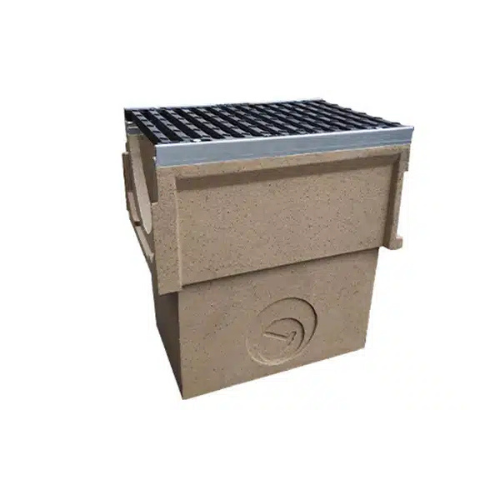

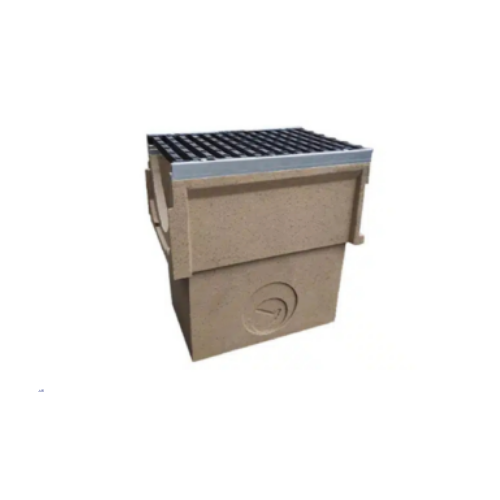

100mm F900 Channel Drainage Sump Unit-Polymer Concrete

The 100mm F900 channel drainage sump unit is designed to integrate with the Polycon 8LOX 100mm F900 channel drainage system, providing a dedicated collection, discharge and maintenance point within the drainage run.

Manufactured from durable polymer concrete and supplied with a heavy-duty ductile iron grating, the sump is suitable for demanding industrial and infrastructure drainage applications where an F900 load classification is specified.

Collection, Outlet & Maintenance Point

Installed as part of the linear drainage system, the sump provides additional collection capacity and a convenient point for inspection and maintenance.

Sediment and debris can collect within the sump before surface water is discharged into downstream drainage pipework, helping make the drainage system easier to inspect and maintain.

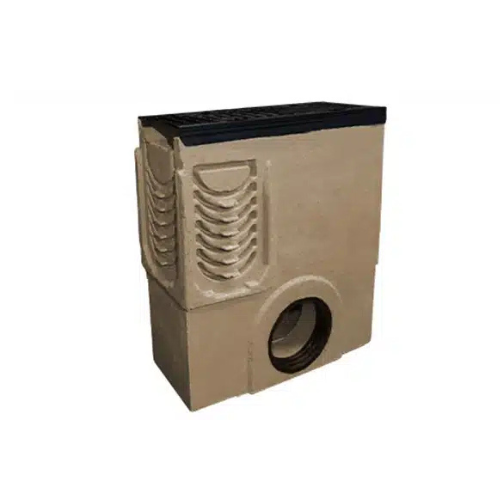

The unit incorporates a 110mm outlet connection for integration with suitable downstream pipework.

Key Features

• F900 load class
• Compatible with 100mm Polycon 8LOX F900 channel drainage
• Polymer concrete sump body
• Heavy-duty ductile iron grating
• 500mm overall length
• 140mm overall width
• 600mm overall depth
• 110mm outlet connection
• Provides a collection and maintenance point
• Suitable for demanding industrial and infrastructure drainage systems

Typical Applications

Suitable applications include:

• Ports and docks
• Container and cargo handling areas
• Heavy industrial sites
• Logistics and distribution facilities
• Heavy plant operating areas
• Infrastructure projects
• Other extreme-load environments requiring F900 drainage

Compatible 100mm F900 Channel Drainage

This sump is designed to complement the 100mm F900 channel drainage system, allowing the channel and sump to form part of a complete linear drainage run.

Alternative F900 Sump Sizes

For wider F900 channel drainage systems, matching 150mm, 200mm and 300mm sump units are also available, allowing the drainage system to be configured according to the required channel width and hydraulic capacity.

D400 Alternative

Where F900 performance is not required by the project specification, the 100mm D400 channel drainage sump unit provides the corresponding option for the D400 100mm channel system.

Project Pricing & Technical Support

For larger channel drainage schemes or project-based requirements, contact our team with the required channel width, approximate linear metres, sump requirements and delivery postcode.

We can assist with product selection, availability, project pricing and delivery requirements.

Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558  or info@drainageandcivilsdirect.co.uk to provide professional guidance.

• Manufacturer / Range: Polycon 8LOX
• Product Type: Channel drainage sump unit
• Compatible System: 100mm F900 channel drainage
• Load Class: F900
• Sump Material: Polymer concrete
• Grating Material: Ductile iron
• Overall Length: 500mm
• Overall Width: 140mm
• Overall Depth: 600mm
• Outlet Connection: 110mm
• Standard: BS EN 1433
• Function: Collection, outlet and maintenance point within the channel drainage system
• Application: Extreme-duty industrial and infrastructure drainage

Detailed technical information including dimensions, load classes and installation guidance for this channel drainage system.

chPolycon 8LOX 100mm F900 Channel Drainage Sump – Technical Datasheet

What is the 100mm F900 channel drainage sump used for?

The sump is installed as part of a 100mm F900 linear drainage system to provide a dedicated collection, outlet and maintenance point. It allows collected surface water to discharge into downstream drainage pipework while also providing an accessible location for inspection and maintenance.

Is this sump compatible with the 100mm F900 channel drainage system?

Yes. This sump is designed to integrate with the 100mm F900 channel drainage system, allowing it to form part of a complete Polycon 8LOX drainage run.

What are the dimensions of the 100mm F900 sump?

The sump measures 500mm long × 140mm overall width × 600mm overall depth, making it compatible with the 100mm-wide F900 channel system.

What size outlet does the sump have?

The sump incorporates a 110mm outlet connection for connection to suitable downstream drainage pipework. The final pipework arrangement should be selected to suit the drainage design and site requirements.

Does the sump include the grating?

Yes. The sump is supplied with a heavy-duty ductile iron grating, providing continuity with the F900 channel drainage system.

Are larger F900 sump units available?

Yes. Matching 150mm, 200mm and 300mm F900 sump units are available for the wider channel systems. These provide options where greater channel width and hydraulic capacity are required.

Do I need F900 or would D400 be suitable?

That depends on the project specification and loading environment. F900 is intended for extreme-duty applications. Where this level of performance is not required, the corresponding 100mm D400 channel drainage sump unit may be suitable, subject to the drainage and loading specification.

Can you quote for a complete F900 channel drainage system?

Yes. For complete drainage runs, larger quantities or project requirements, contact our team with the channel width, required depth, approximate linear metres, number of sumps and delivery postcode. We can assist with product selection, availability, project pricing and delivery requirements.
