Description

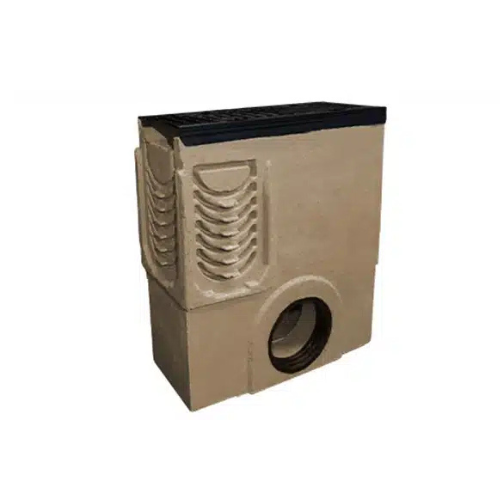

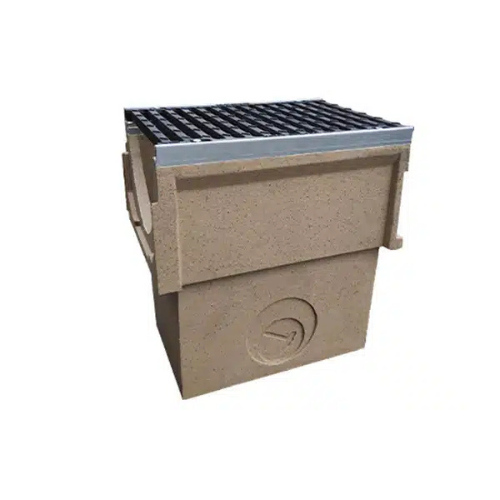

The 200mm F900 channel drainage sump unit is designed to integrate with the Polycon 8LOX 200mm F900 channel drainage system, providing a dedicated collection, discharge and maintenance point within the drainage run.
Manufactured from durable polymer concrete and supplied with a heavy-duty ductile iron grating, the sump is suitable for demanding industrial and infrastructure drainage applications where an F900 load classification is specified.
High-Capacity Collection & Maintenance
With an overall depth of 810mm, the 200mm sump provides substantial collection capacity within larger channel drainage systems.
The sump provides a convenient point for sediment collection, inspection and maintenance before collected surface water is discharged into downstream drainage pipework.
Outlet provision of 160–200mm allows the unit to be incorporated into suitable downstream drainage systems.
Key Features
- F900 load class
- Compatible with 200mm Polycon 8LOX F900 channel drainage
- Polymer concrete sump body
- Heavy-duty ductile iron grating
- 500mm overall length
- 380mm overall width
- 810mm overall depth
- 160–200mm outlet provision
- Provides a collection and maintenance point
- Suitable for high-capacity industrial and infrastructure drainage systems
Typical Applications
Suitable applications include:
- Ports and docks
- Container and cargo handling areas
- Heavy industrial sites
- Logistics and distribution facilities
- Heavy plant operating areas
- Major civil engineering projects
- Infrastructure drainage schemes
Compatible 200mm F900 Channel Drainage
This sump is designed to complement the 200mm F900 channel drainage system, allowing the channel and sump to form part of a complete high-capacity linear drainage run.
Alternative F900 Sump Sizes
For different channel widths, matching 100mm, 150mm and 300mm F900 sump units are also available, allowing the system to be configured according to the required channel width and hydraulic capacity.
D400 Alternative
Where F900 performance is not required by the project specification, the 200mm D400 channel drainage sump unit provides the corresponding option for the 200mm D400 channel system.
Project Pricing & Technical Support
For larger channel drainage schemes or project-based requirements, contact our team with the required channel width, approximate linear metres, sump requirements and delivery postcode.
We can assist with product selection, availability, project pricing and delivery requirements.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
- Manufacturer / Range: Polycon 8LOX
- Product Type: Channel drainage sump unit
- Compatible System: 200mm F900 channel drainage
- Load Class: F900
- Sump Material: Polymer concrete
- Grating Material: Ductile iron
- Overall Length: 500mm
- Overall Width: 380mm
- Overall Depth: 810mm
- Outlet Provision: 160–200mm
- Standard: BS EN 1433
- Function: Collection, outlet and maintenance point within the channel drainage system
- Application: Extreme-duty industrial and infrastructure drainage
Detailed technical information including dimensions, load classes and installation guidance for this channel drainage system.
Polycon 8LOX 200mm F900 Channel Drainage Sump – Technical Datasheet
What is the 200mm F900 channel drainage sump used for?
The sump is installed as part of a 200mm F900 linear drainage system to provide a dedicated collection, outlet and maintenance point. Its larger capacity makes it suitable for high-capacity drainage systems serving demanding industrial and infrastructure applications.
Is this sump compatible with the 200mm F900 channel drainage system?
Yes. This sump is designed to integrate with the 200mm F900 channel drainage system, allowing it to form part of a complete Polycon 8LOX drainage run.
What are the dimensions of the 200mm F900 sump?
The sump measures 500mm long × 380mm overall width × 810mm overall depth, providing substantial collection capacity within the 200mm channel drainage system.

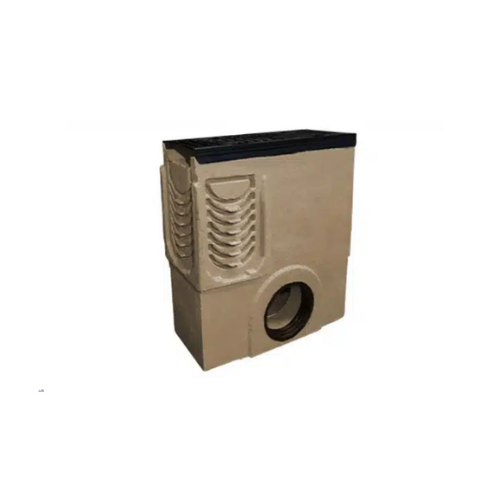

What size outlet does the sump have?
The sump provides 160–200mm outlet provision for connection to suitable downstream drainage pipework. The final outlet and pipework arrangement should be selected according to the drainage design and site requirements.
Does the sump include the grating?
Yes. The sump is supplied with a heavy-duty ductile iron grating, providing continuity with the F900 channel drainage system.
Are other F900 sump sizes available?
Yes. Matching 100mm, 150mm and 300mm F900 sump units are available for the other channel widths, allowing the system to be configured according to the required channel width and hydraulic capacity.
Would the 200mm D400 sump be suitable instead?
Where F900 performance is not required by the project specification, the 200mm D400 channel drainage sump unit provides the corresponding option for the 200mm D400 channel system. The appropriate load class should be selected according to the project specification and expected loading conditions.
Can you quote for a complete F900 channel drainage system?
Yes. For complete drainage runs, larger quantities or project requirements, contact our team with the required channel width, depth, approximate linear metres, number of sumps and delivery postcode. We can assist with product selection, availability, project pricing and delivery requirements.
