Description

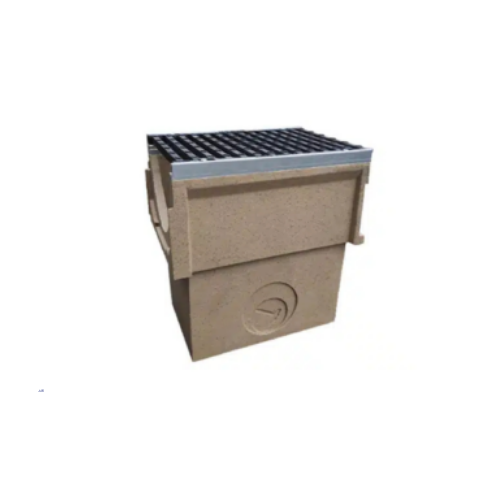

The 150mm F900 channel drainage sump unit is designed to integrate with the Polycon 8LOX 150mm F900 channel drainage system, providing a dedicated collection, discharge and maintenance point within the drainage run.
Manufactured from durable polymer concrete and supplied with a heavy-duty ductile iron grating, the sump is suitable for demanding industrial and infrastructure drainage applications where an F900 load classification is specified.
Collection, Outlet & Maintenance Point
Installed as part of the linear drainage system, the sump provides additional collection capacity and a convenient point for inspection and maintenance.
Sediment and debris can collect within the sump before surface water is discharged into downstream drainage pipework, helping make the drainage system easier to inspect and maintain.

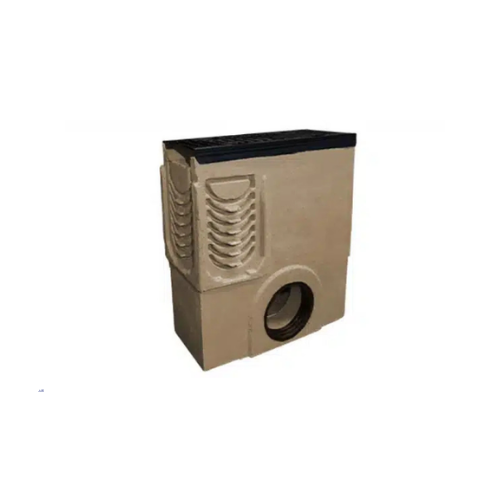

The unit incorporates a 160mm outlet connection for integration with suitable downstream pipework.
Key Features
- F900 load class
- Compatible with 150mm Polycon 8LOX F900 channel drainage
- Polymer concrete sump body
- Heavy-duty ductile iron grating
- 500mm overall length
- 195mm overall width
- 600mm overall depth
- 160mm outlet connection
- Provides a collection and maintenance point
- Suitable for demanding industrial and infrastructure drainage systems
Typical Applications
Suitable applications include:
- Ports and docks
- Container and cargo handling areas
- Heavy industrial sites
- Logistics and distribution facilities
- Heavy plant operating areas
- Infrastructure projects
- Other extreme-load environments requiring F900 drainage
Compatible 150mm F900 Channel Drainage
This sump is designed to complement the 150mm F900 channel drainage system, allowing the channel and sump to form part of a complete linear drainage run.
Alternative F900 Sump Sizes
For different channel widths, matching 100mm, 200mm and 300mm F900 sump units are also available, allowing the drainage system to be configured according to the required channel width and hydraulic capacity.
D400 Alternative
Where F900 performance is not required by the project specification, the 150mm D400 channel drainage sump unit provides the corresponding option for the D400 150mm channel system.
Project Pricing & Technical Support
For larger channel drainage schemes or project-based requirements, contact our team with the required channel width, approximate linear metres, sump requirements and delivery postcode.
We can assist with product selection, availability, project pricing and delivery requirements.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558Â or info@drainageandcivilsdirect.co.uk to provide professional guidance.
- Manufacturer / Range: Polycon 8LOX
- Product Type: Channel drainage sump unit
- Compatible System: 150mm F900 channel drainage
- Load Class: F900
- Sump Material: Polymer concrete
- Grating Material: Ductile iron
- Overall Length: 500mm
- Overall Width: 195mm
- Overall Depth: 600mm
- Outlet Connection: 160mm
- Standard: BS EN 1433
- Function: Collection, outlet and maintenance point within the channel drainage system
- Application: Extreme-duty industrial and infrastructure drainage
Detailed technical information including dimensions, load classes and installation guidance for this channel drainage system.
Polycon 8LOX 150mm F900 Channel Drainage Sump – Technical Datasheet
What is the 150mm F900 channel drainage sump used for?
The sump is installed as part of a 150mm F900 linear drainage system to provide a dedicated collection, outlet and maintenance point. It allows collected surface water to discharge into downstream drainage pipework while providing an accessible point for inspection and maintenance.
Is this sump compatible with the 150mm F900 channel drainage system?
Yes. This sump is designed to integrate with the 150mm F900 channel drainage system, allowing it to form part of a complete Polycon 8LOX drainage run.
What are the dimensions of the 150mm F900 sump?
The sump measures 500mm long × 195mm overall width × 600mm overall depth, making it compatible with the 150mm F900 channel system.
What size outlet does the sump have?
The sump incorporates a 160mm outlet connection for connection to suitable downstream drainage pipework. The final pipework arrangement should be selected to suit the drainage design and site requirements.
Does the sump include the grating?
Yes. The sump is supplied with a heavy-duty ductile iron grating, providing continuity with the F900 channel drainage system.
Are other F900 sump sizes available?
Yes. Matching 100mm, 200mm and 300mm F900 sump units are available for the other channel widths, allowing the drainage system to be selected according to the required channel width and hydraulic capacity.
Would the 150mm D400 sump be suitable instead?
Where F900 performance is not required by the project specification, the 150mm D400 channel drainage sump unit provides the corresponding option for the 150mm D400 channel system. The appropriate load class should be selected according to the project specification and expected loading conditions.
Can you quote for a complete F900 channel drainage system?
Yes. For complete drainage runs, larger quantities or project requirements, contact our team with the required channel width, depth, approximate linear metres, number of sumps and delivery postcode. We can assist with product selection, availability, project pricing and delivery requirements.
