Description

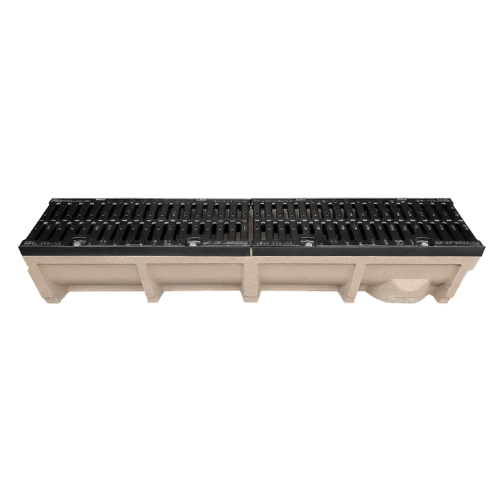

The 150mm F900 channel drainage system is designed for demanding industrial and infrastructure applications where an F900 load classification is specified.
Manufactured as part of the Polycon 8LOX range, the system combines a durable polymer concrete channel body with an F900 ductile iron grating and ductile iron edge rail, providing a robust drainage solution for heavily trafficked environments.
Its 150mm internal channel width provides greater hydraulic capacity than the compact 100mm system, making it suitable where increased surface-water collection is required.
Key Features
- F900 load class
- 150mm internal channel width
- 195mm overall width
- Polymer concrete channel construction

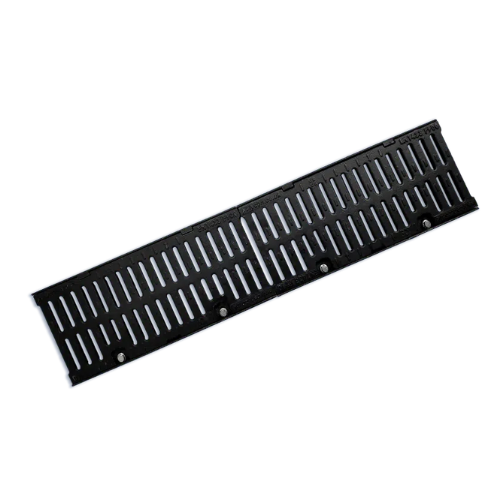

- F900 ductile iron slotted grating
- Ductile iron edge rail
- Secure 8-point locking system
- SafeHeel grating design
- Supplied in modular 1m lengths
- Four available channel depths

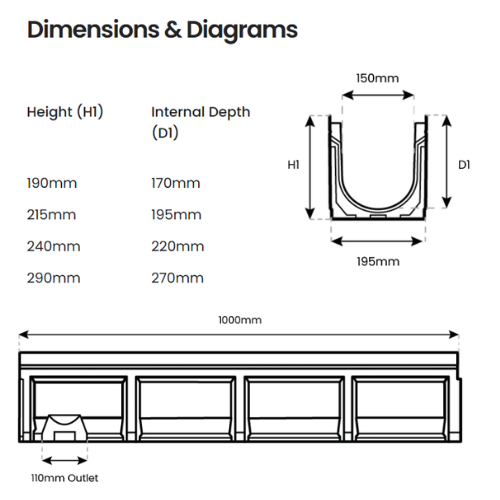

Available Depths
The 150mm F900 channel is available in four overall depths:
- 190mm overall / 170mm internal
- 215mm overall / 195mm internal
- 240mm overall / 220mm internal
- 290mm overall / 270mm internal
This provides flexibility when accommodating different invert levels, construction depths and hydraulic requirements.
Typical Applications
The system is suitable for demanding drainage environments such as:
- Ports and docks
- Cargo and handling areas
- Heavy industrial sites
- Warehouses and distribution facilities
- Heavy plant operating areas
- Commercial and civil infrastructure
Ductile Iron Edge Rail & 8-Point Locking
Unlike the corresponding D400 system, which uses a galvanised steel edge rail, the F900 version incorporates a ductile iron edge rail designed for the more demanding loading environment.
The 8-point locking system securely retains the grating within the channel and helps maintain stability under demanding traffic conditions.
Complete 150mm F900 Drainage System
A matching 150mm F900 channel drainage sump unit is available to provide a dedicated collection, outlet and maintenance point within the drainage run.
Alternative F900 Channel Widths
For different hydraulic requirements, the F900 range is also available in 100mm, 200mm and 300mm channel widths.
D400 Alternative
Where F900 performance is not required by the project specification, the 150mm D400 channel drainage system provides the corresponding heavy-duty option using the same
Bulk Orders & Project Pricing
For larger quantities, complete drainage runs or project requirements, contact our team with the required channel depth, approximate linear metres, sump requirements and delivery postcode.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
- Manufacturer / Range: Polycon 8LOX
- Product Type: Linear channel drainage system
- Load Class: F900
- Channel Material: Polymer concrete
- Grating Material: Ductile iron
- Grating Type: SafeHeel slotted grating
- Edge Rail: Ductile iron
- Locking System: 8-point locking
- Internal Width: 150mm
- Overall Width: 195mm
- Channel Length: 1000mm
- Overall Depths: 190mm, 215mm, 240mm, 290mm
- Internal Depths: 170mm, 195mm, 220mm, 270mm
- Standard: BS EN 1433
- Compatible Accessories: Matching sump units and system accessories
Detailed technical information including dimensions, load classes and installation guidance for this channel drainage system.
Polycon 8LOX 150mm F900 Channel Drainage – Technical Datasheet
What applications is 150mm F900 channel drainage suitable for?
The system is designed for extreme-duty drainage applications where an F900 load classification is specified. Typical applications include ports, docks, cargo handling areas, heavy industrial sites, logistics facilities, yards and infrastructure projects subject to demanding loading conditions.
What is the difference between D400 and F900 channel drainage?
F900 is intended for more demanding loading environments than D400. This F900 system incorporates a ductile iron edge rail alongside its ductile iron grating, whereas the corresponding Polycon 8LOX D400 system uses a galvanised steel edge rail. The required load class should always be selected according to the project specification and installation environment.
What depths are available in the 150mm F900 channel?
The channel is available in overall depths of 190mm, 215mm, 240mm and 290mm. Corresponding internal depths are 170mm, 195mm, 220mm and 270mm, providing flexibility for different invert levels and drainage requirements.
What is the width of the 150mm F900 channel?
The system has a 150mm internal channel width and 195mm overall width. The 150mm system provides greater hydraulic capacity than the 100mm F900 range while retaining a relatively compact channel footprint.
Is there a matching sump for the 150mm F900 channel?
Yes. The 150mm F900 channel drainage sump unit is designed to integrate with the channel system and provides a dedicated collection, outlet and maintenance point within the drainage run.
Are other F900 channel widths available?
Yes. The F900 range is also available in 100mm, 200mm and 300mm channel widths, allowing the system to be selected according to the required hydraulic capacity, construction depth and drainage design.
Would the 150mm D400 channel be suitable instead?
Where F900 performance is not required by the project specification, the 150mm D400 channel drainage system provides the corresponding heavy-duty alternative. The appropriate load class should be determined from the project specification and expected loading conditions.
Can you provide project pricing for larger quantities?
Yes. For complete drainage runs, larger quantities or project requirements, contact our team with the required depth, approximate linear metres, sump requirements and delivery postcode. We can assist with product selection, availability, project pricing and delivery requirements.
