Description

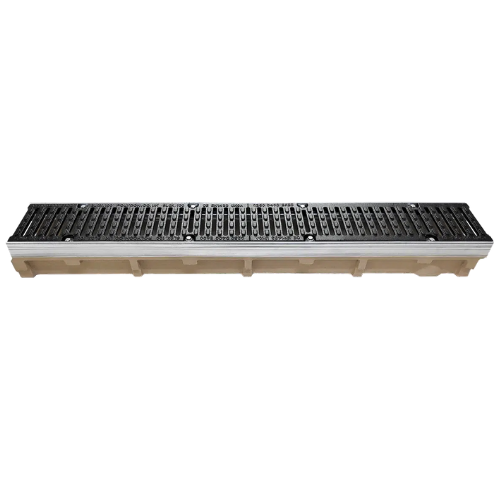

The 100mm F900 channel drainage system is engineered for applications requiring extreme load capacity and durability. Suitable for industrial yards, distribution centres and heavy-use environments, this system provides reliable surface water management where standard D400 drainage systems are not sufficient.
Manufactured from high-strength polymer concrete and fitted with a ductile iron grating and ductile iron edge rail, the system offers superior load-bearing performance and long-term durability under constant heavy vehicle traffic.
The integrated 8-point locking system ensures the grating remains securely fixed in place, preventing movement under load and improving safety in demanding environments.
Available in multiple depths from 140mm to 290mm, the system can be adapted to suit different drainage capacities and installation requirements.
Sold per metre (1m lengths) – select required depth.
Key Features
- F900 load class (up to 90 tonnes)
- 100mm internal channel width
- Polymer concrete construction

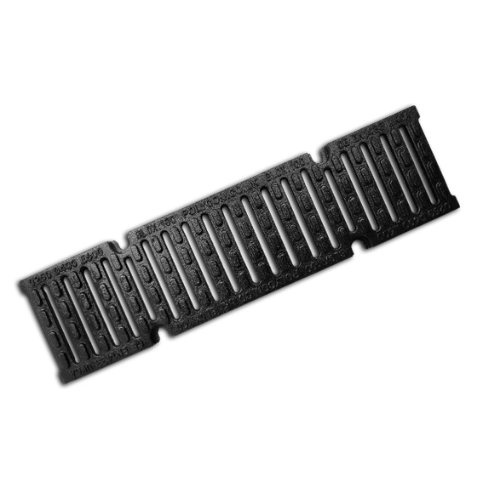

- Ductile iron grating
- Ductile iron edge rail (heavy-duty upgrade)
- 8-point locking system
- Multiple depth option
Typical Applications
- Industrial yards and loading areas
- Distribution centres and logistics hubs
- Warehousing and manufacturing facilities
- Ports, docks and container yards
- Heavy plant and vehicle traffic area
Installation Compatibility
Compatible with standard 110mm drainage connections via outlet units.
Part of our modular channel drainage range, available in 150mm and 200mm widths and load classes up to F900.
For standard commercial applications, see our 100mm D400 channel drainage system
Available Alternatives
- 150mm D400 channel drainage
- 200mm D400 channel drainage
- 150mm F900 channel drainage
- 200mm F900 channel drainage
Bulk Orders & Project Pricing
For larger quantities or project-based requirements, contact us for competitive pricing and nationwide delivery options.
Plus, enjoy fast delivery your order can be dispatched within 48 hours, ensuring your project stays on schedule without delays.
Delivery charges will be calculated in your cart at checkout.
Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
Product Type: Channel Drainage System
Length: 1000mm
Internal Width: 100mm
Overall Width: 140mm
Load Class: F900
Material (Channel): Polymer Concrete
Material (Grating): Ductile Iron
Edge Rail: Ductile Iron
Standard: EN1433 / EN124
Installation: Modular system
Outlet Connection: 110mm bottom outlet

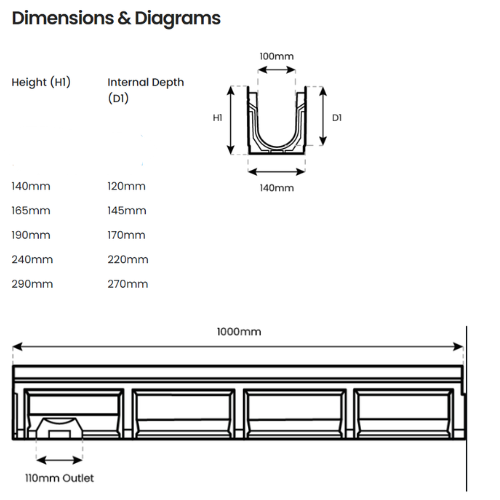

Detailed technical information including dimensions, load classes and installation guidance for this channel drainage system.
channel-drainage-system-8lox-100-technical-specifications.pdf
