Description
This 1m Lite Aqua channel provides a lightweight drainage solution for pedestrian and landscaped areas where an A15 load class is required. Its compact polyethylene construction makes it particularly suitable for patios, garden paths, paved areas and other locations without vehicular traffic.

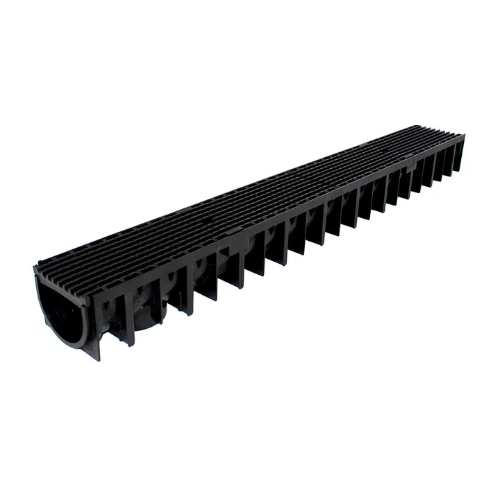

92mm Deep Lite Aqua Channel
The channel has a 100mm internal width, 120mm overall width and 92mm overall depth, providing a useful drainage capacity while retaining the lightweight construction of the Lite Aqua system.
Individual 1m channel lengths can be connected to form longer drainage runs, allowing the system to suit both small installations and larger landscaped areas.
Black Composite Mesh Grate
The channel is supplied complete with a black composite mesh grate, providing a neat, corrosion-resistant finish for pedestrian applications.
The black finish makes this version particularly suitable where a less visually prominent drainage grate is preferred alongside paving, patios or landscaped surfaces.
Complete Lite Aqua Drainage System
Compatible Lite Aqua accessories include corner units, end caps and outlet fittings, allowing complete drainage runs to be configured around the requirements of the installation.
For alternative pedestrian drainage options, view our full range of A15 channel drainage.
- Product Type: Linear channel drainage
- Range: Polycon Lite Aqua 100
- Load Class: A15
- Standard: BS EN 1433
- Channel Length: 1000mm
- Internal Width: 100mm
- Overall Width: 120mm
- Overall Depth: 92mm
- Internal Depth: 62mm
- Channel Material: Polyethylene
- Grating Material: Composite
- Grating Type: Black mesh
- Grating Load Class: A15
- Bottom Outlet Provision: 90mm
- Suitable Applications: Pedestrian areas, patios, paths, gardens and landscaped areas
- Compatible Accessories: Lite Aqua corner units, end caps and outlet fittings
- Unit Length: 1 metre
What load class is this channel drainage?
This Lite Aqua channel is rated to A15 under BS EN 1433 and is designed for pedestrian and light-duty areas where vehicles do not have access.
What are the dimensions of the channel?
Each channel is 1000mm long with a 100mm internal width, 120mm overall width, 92mm overall depth and 62mm internal depth.
Can this A15 channel drainage be used on a driveway?
No. A15 drainage is intended for pedestrian areas rather than locations subject to vehicle traffic. For driveway and similar applications, view our B125 channel drainage range.
What is the channel made from?
The Lite Aqua channel body is manufactured from lightweight polyethylene and is supplied with a black composite mesh grate.
Can multiple 1m channels be connected together?
Yes. The 1m channel sections can be connected together to create longer linear drainage runs to suit the installation.
Are corner units available for this system?
Yes. Compatible Lite Aqua corner units are available to allow changes in direction within the drainage run.
How can the channel connect to underground drainage?
The channel incorporates provision for a bottom outlet connection, while compatible Lite Aqua outlet fittings and end caps can also be used depending on the drainage layout.
Can you provide project or quantity pricing?
Yes. For larger quantities or project requirements, contact our team with the required quantity and delivery postcode for a quotation.
