Description
The 300mm F900 channel drainage system provides a high-capacity drainage solution for demanding industrial, civil engineering and infrastructure applications where an F900 load classification is specified.
Its substantial 300mm internal channel width provides increased hydraulic capacity for large surface areas and high-volume surface-water drainage schemes.

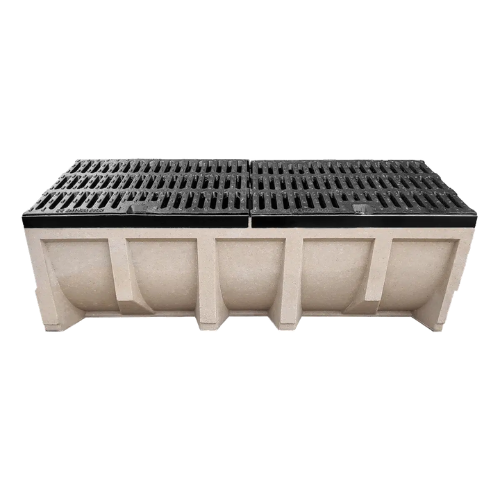

Manufactured from polymer concrete and fitted with a heavy-duty ductile iron grating and ductile iron edge rail, the system combines high-capacity drainage with robust construction for demanding trafficked environments.
Key Features
- F900 load class
- 300mm internal channel width
- 360mm overall width
- 390mm overall depth
- 325mm internal depth
- Polymer concrete channel construction

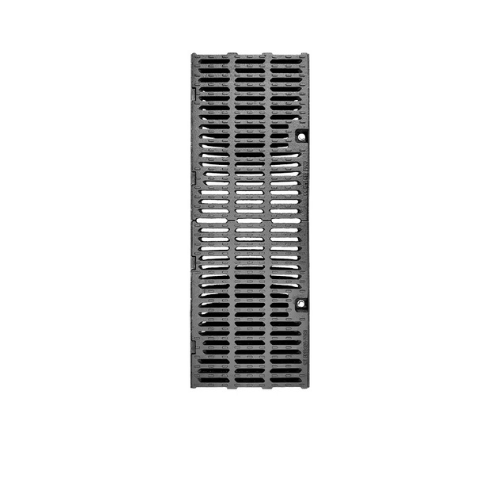

- Heavy-duty ductile iron grating
- Ductile iron edge rail
- Supplied in modular 1m lengths
- Designed for high-capacity surface-water drainage
High-Capacity Drainage
The 300mm internal width and 325mm internal depth provide substantially greater drainage capacity than the narrower F900 systems.
This makes the channel particularly suitable for larger paved areas and infrastructure schemes where significant volumes of surface water need to be collected and conveyed efficiently.
Typical Applications
Suitable applications include:
- Ports and docks
- Airports and airside infrastructure
- Container and cargo handling areas
- Heavy industrial sites
- Logistics and distribution facilities
- Heavy plant operating areas
- Major civil engineering projects
- Infrastructure drainage schemes
Heavy-Duty Construction
The polymer concrete channel is combined with a ductile iron grating and ductile iron edge rail, providing a robust system for demanding F900 drainage applications.
The system is supplied in modular 1m sections, allowing complete drainage runs to be configured according to the project layout and hydraulic requirements.
Complete 300mm F900 Drainage System
A matching 300mm F900 channel drainage sump unit is available to provide a dedicated collection, outlet and maintenance point within the drainage run.
Alternative F900 Channel Widths
Where a 300mm channel is not required, the F900 range also includes 100mm, 150mm and 200mm channel widths.
These provide more compact F900 solutions for projects requiring lower hydraulic capacity while retaining the required load classification.
Bulk Orders & Project Pricing
For larger quantities, complete drainage runs or project requirements, contact our team with the approximate linear metres, sump requirements and delivery postcode.
We can assist with product selection, availability, project pricing and delivery requirements.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
- Manufacturer / Range: Polycon Heavy Duty Channel Drainage
- Product Type: High-capacity linear channel drainage system
- Load Class: F900
- Channel Material: Polymer concrete
- Grating Material: Ductile iron
- Grating Type: Slotted grating
- Edge Rail: Ductile iron
- Internal Width: 300mm
- Overall Width: 360mm
- Channel Length: 1000mm
- Overall Depth: 390mm
- Internal Depth: 325mm
- Standard: BS EN 1433
- Compatible Accessories: Matching sump unit and system accessories
Detailed technical information including dimensions, load classes and installation guidance for this channel drainage system.
What applications is 300mm F900 channel drainage suitable for?
The system is designed for high-capacity, extreme-duty drainage applications where an F900 load classification is specified. Typical applications include ports, docks, cargo handling areas, heavy industrial sites, logistics facilities and major civil engineering and infrastructure projects.
What are the dimensions of the 300mm F900 channel?

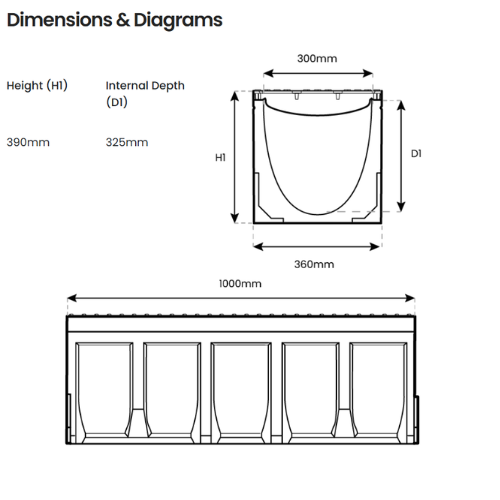

The channel has a 300mm internal width, 360mm overall width and 390mm overall depth. The internal depth is 325mm and each channel section is supplied in a 1000mm length.
Why choose a 300mm channel drainage system?
The substantial 300mm internal width and 325mm internal depth provide increased hydraulic capacity for larger drainage schemes. It is suited to applications where significant volumes of surface water need to be collected and conveyed through the channel system.
What load class is the 300mm channel?
The channel is supplied as an F900 drainage system for extreme-duty applications. The required load class should always be selected according to the project specification and installation environment.
Is there a matching sump for the 300mm F900 channel?
Yes. A matching 300mm F900 channel drainage sump unit is available to provide a dedicated collection, outlet and maintenance point within the drainage run.
Are smaller F900 channel widths available?
Yes. The F900 range also includes 100mm, 150mm and 200mm channel widths, providing more compact options where the hydraulic capacity of the 300mm system is not required.
Is there a corresponding 300mm D400 channel available?
The current range does not include a 300mm D400 channel product. Where a different load class or channel capacity is required, contact our team with the project specification and we can advise on suitable options.
Can you provide project pricing for 300mm F900 channel drainage?
Yes. For complete drainage runs, larger quantities or project requirements, contact our team with the approximate linear metres, sump requirements and delivery postcode. We can assist with product selection, availability, project pricing and delivery requirements.
