Description

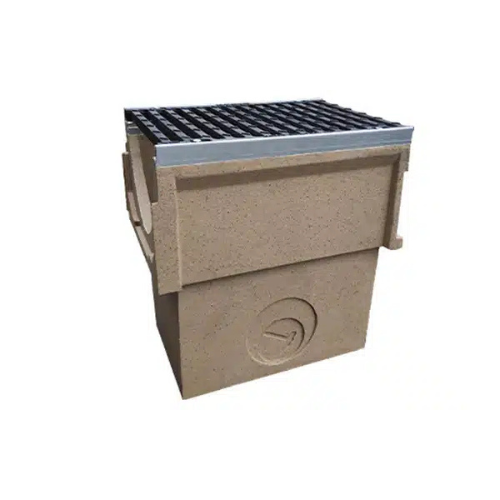

The 100mm D400 channel drainage sump unit provides a dedicated collection and maintenance point within a linear channel drainage system, allowing surface water to discharge from the channel run into downstream drainage pipework.
Designed for integration with the Polycon 8LOX 100mm D400 channel drainage system, the sump is manufactured from durable polymer concrete and supplied with a D400 ductile iron grating.
With a 500mm length, 140mm overall width and 600mm overall depth, the sump incorporates a 110mm outlet connection for connection into the downstream drainage system.
Key Features
- D400 load class
- Compatible with 100mm Polycon 8LOX channel drainage
- Polymer concrete sump body
- Ductile iron grating
- 500mm overall length
- 140mm overall width
- 600mm overall depth
- 110mm outlet connection
- Provides a collection and discharge point within the channel run
- Provides access for inspection and maintenance
- Helps collect silt and debris before discharge into downstream pipework
Silt Collection & Maintenance Access
The sump provides a collection point within the drainage run where silt and debris can settle before water is discharged into the downstream drainage system.
It also provides a convenient point for inspection and maintenance, helping to support the long-term operation of the channel drainage system.
System Compatibility
The sump is designed to complement the 100mm D400 channel drainage system, allowing contractors to create a complete channel run with a dedicated outlet and maintenance point.
Typical Applications
- Commercial and industrial yards
- Car parks
- Access roads and service areas
- Distribution and logistics facilities
- Commercial developments
- Surface water drainage systems
- Other trafficked applications where D400 channel drainage is specified
Installation & Outlet Connection
The sump can be incorporated at an appropriate point within the channel drainage run to provide a connection into downstream drainage pipework.
The unit incorporates a 110mm outlet connection. The location and number of sump units should be determined according to the drainage design, channel layout, discharge requirements and maintenance strategy.
Bulk Orders & Project Pricing
For complete drainage runs, larger quantities or project requirements, contact our team with the required channel length, depth, sump quantity and delivery postcode for project pricing and delivery options.
View our full range of D400 channel drainage for additional channel widths, sump units and system options.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558Â or info@drainageandcivilsdirect.co.uk to provide professional guidance.
- Manufacturer / Range: Polycon 8LOX
- Product Type: Channel drainage sump unit
- Load Class: D400
- System Width: 100mm
- Body Material: Polymer concrete
- Grating Material: Ductile iron
- Length: 500mm
- Overall Width: 140mm
- Overall Depth: 600mm
- Outlet Connection: 110mm
- Compatibility: 100mm Polycon 8LOX channel drainage system
- Standard: BS EN 1433
Detailed technical information including dimensions, load classes and installation guidance for this channel drainage system.
Polycon 8LOX 100mm D400 Channel Drainage Sump – Technical Datasheet
What is the 100mm D400 channel drainage sump used for?
The sump provides a collection, outlet and maintenance point within a 100mm channel drainage run. It allows collected surface water to discharge from the channel system into downstream drainage pipework.
Is this sump compatible with the 100mm D400 channel drain?
Yes. The sump is designed for use with the Polycon 8LOX 100mm D400 channel drainage system, allowing it to be incorporated as part of a complete linear drainage run.
What size is the 100mm D400 sump?
The sump measures 500mm long, 140mm overall width and 600mm overall depth, making it compatible with the 100mm channel system.
What size outlet does the sump have?
The sump incorporates a 110mm outlet connection for connection into downstream drainage pipework.
What is the sump manufactured from?
The sump body is manufactured from durable polymer concrete and is supplied with a ductile iron grating for use as part of the D400 channel drainage system.
Does the sump help with maintenance of the channel drainage system?
Yes. As well as providing a discharge point, the sump creates an accessible collection point where silt and debris can settle, helping with inspection and maintenance of the drainage run.
How many sump units do I need in a channel drainage run?
There is no universal spacing requirement. The number and position of sump units should be determined by the drainage design, channel layout, discharge points, hydraulic requirements and maintenance strategy.
Can you provide project pricing for the channel and sump together?
Yes. For complete channel runs, larger quantities or contractor requirements, Contact our team with the required channel depth, overall length, sump quantity and delivery postcode for project pricing.
