How to Choose the Right Geotextile for Your Project
Selecting the correct geotextile is essential to the long-term performance of roads, drainage systems, working platforms and other civil engineering projects. The right geotextile can improve drainage, maintain separation between materials, protect valuable assets and help extend the lifespan of a construction.
However, with woven and non-woven geotextiles available in a range of specifications, many contractors and engineers are unsure which product is best suited to their application.
In this guide, we’ll explain the different types of geotextiles, their primary functions and how to choose the most appropriate solution for your project.
Topics Covered
- What is a geotextile?
- Why are geotextiles used?
- The five functions of a geotextile
- Woven vs non-woven geotextiles
- How to choose the correct geotextile
- Typical applications
- Frequently asked questions
What Is a Geotextile?
A geotextile is a permeable geosynthetic fabric used in civil engineering and construction projects to improve the performance of the ground.
Installed between different layers of soil, stone or other construction materials, geotextiles perform a range of important functions that help create stronger, more durable and longer-lasting structures.
Geotextiles are commonly used in:
- Roads
- Access tracks
- Car parks
- Drainage systems
- Working platforms
- Attenuation tanks
- Industrial developments
- Housing developments
- Environmental projects
Rather than strengthening the ground directly, geotextiles help manage the movement of soil and water while maintaining the integrity of the construction.
The type of geotextile selected will depend on the specific requirements of the project and the function it is intended to perform.
Why Are Geotextiles Used?
Construction projects are often built on ground that is wet, soft or variable in nature. Without the correct separation or filtration layer, fine soils can mix with the aggregate above, reducing the strength of the sub-base and affecting long-term performance.
Geotextiles provide a simple but highly effective solution by performing one or more key engineering functions within the construction.
These functions help to:
- Separate different materials
- Filter water through the ground
- Improve drainage performance
- Protect liners and membranes
- Reinforce ground in specific applications
Understanding these functions is the key to selecting the right geotextile for your project.
The Five Functions of a Geotextile
Although geotextiles are available in a wide range of materials and specifications, they are generally selected based on the job they need to perform rather than simply their weight or appearance.
In civil engineering, geotextiles are typically used to perform one or more of five key functions.

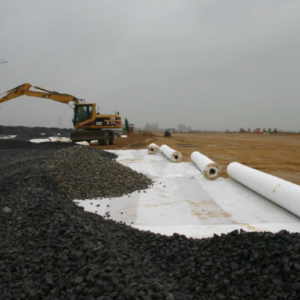

1. Separation
Separation is the most common function of a geotextile.
Installed between the natural ground and the aggregate layer, the geotextile prevents the two materials from mixing together. This helps maintain the strength of the sub-base while reducing contamination of the aggregate.
Typical applications include:
- Roads
- Driveways
- Access tracks
- Car parks
- Construction compounds
To learn more about separation geotextiles, read our guide on Why Are Some Geotextiles Orange?
2. Filtration
A geotextile allows water to pass through while retaining fine soil particles.
This helps maintain the performance of drainage systems by preventing soils from blocking the surrounding aggregate.
Typical applications include:
- French drains
- Land drainage
- Highway drainage
- Sustainable drainage systems
- Retaining structures
3. Drainage
Some geotextiles help direct water towards designated drainage systems while allowing excess groundwater to dissipate.
This assists with managing water movement beneath the construction and helps improve long-term ground performance.
Typical applications include:
- Drainage blankets
- Embankments
- Retaining walls
- Infrastructure projects

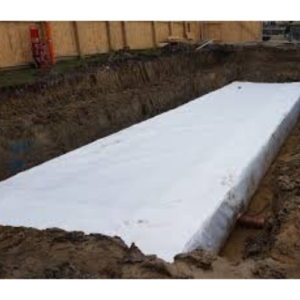

4. Protection
Protection geotextiles are used to cushion and protect sensitive materials from damage during installation and throughout the life of the construction.
Typical applications include:
- Geomembranes
- Attenuation tanks
- Pond liners
- Containment systems
- Environmental projects
5. Reinforcement
In some applications, geotextiles contribute to ground reinforcement by improving the interaction between soils and other geosynthetic materials.
They are commonly used alongside geogrids where separation, filtration and reinforcement are all required within the construction build-up.
Typical applications include:
- Working platforms
- Access roads
- Haul roads
- Ground improvement
- Weak subgrades
Understanding these five functions makes it much easier to select the correct geotextile for your project, as the specification should always be based on the performance required rather than the appearance or weight of the material
Woven vs Non-Woven Geotextiles
One of the most common questions asked by contractors and engineers is whether a woven or non-woven geotextile is the better choice.
The answer depends entirely on the application.
Neither product is “better” than the other—they are simply designed to perform different functions.
Woven Geotextiles
Woven geotextiles are manufactured by weaving high-strength polymer tapes or fibres together to create a strong, stable fabric.
They are typically selected where high-strength separation and long-term sub-base performance are the primary requirements.
Typical applications include:
- Access roads
- Haul roads
- Working platforms
- Ground stabilisation
- Contaminated land

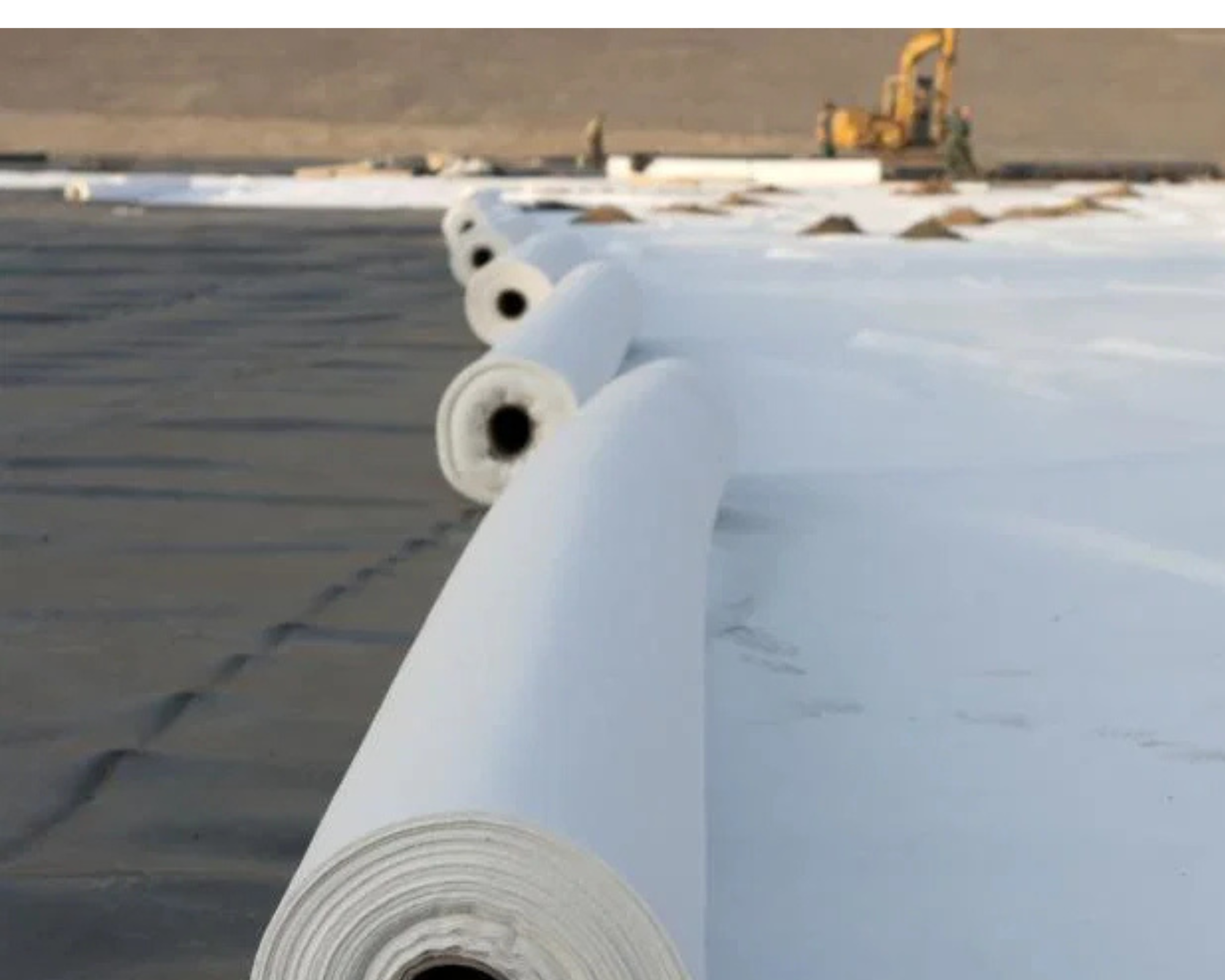

Non-Woven Geotextiles
Non-woven geotextiles are manufactured by bonding synthetic fibres together to form a permeable fabric.
They are commonly used where separation, filtration, drainage or protection are required.
Typical applications include:
- Drainage systems
- French drains
- Car parks
- Attenuation tanks
- Geomembrane protection
Which Type Do You Need?
As a general guide:
Choose a woven geotextile if you need:
- High tensile strength
- Robust separation
- Long-term sub-base performance
- Durability beneath trafficked areas
Choose a non-woven geotextile if you need:
- Water filtration
- Drainage performance
- Geomembrane protection
- Separation beneath aggregate
If you’re unsure which type is best suited to your project, consider the function the geotextile needs to perform rather than simply comparing product weights or thicknesses.
Choosing the Right Geotextile
Selecting the right geotextile starts with understanding the problem you’re trying to solve.
Rather than choosing a product based solely on its weight or thickness, consider the primary function it needs to perform within the construction.
Choose a woven geotextile if you need to:
- Keep soil and aggregate separated
- Support roads and other trafficked areas
- Maintain long-term sub-base performance
- Provide a durable separation layer
- Improve the performance of paved constructions
Choose a non-woven geotextile if you need to:
- Filter water
- Improve drainage
- Retain fine soil particles
- Protect drainage systems
- Separate aggregate and soils
Choose a protection geotextile if you need to:
- Protect geomembranes
- Cushion attenuation tanks
- Protect pond liners
- Reduce puncture risk
- Protect containment systems
If your project requires both reinforcement and separation, a geocomposite solution may provide the most efficient option by combining multiple engineering functions within a single product.
When selecting a geotextile, always consider:
- Ground conditions
- Soil type
- Drainage requirements
- Traffic loading
- Construction method
- Project lifespan
The most suitable geotextile will depend on the function it needs to perform rather than simply its weight, colour or appearance
Frequently Asked Questions
What is the main purpose of a geotextile?
A geotextile is used to improve the performance of the ground by providing one or more engineering functions, including separation, filtration, drainage, protection and reinforcement.
Should I choose a woven or non-woven geotextile?
It depends on the job you’re trying to do. Woven geotextiles are typically chosen where robust separation beneath trafficked areas is required, while non-woven geotextiles are generally selected where filtration, drainage, protection and water movement are the priority.
Does the weight of a geotextile determine its performance?
No. While weight can be one factor, the most important consideration is the function the geotextile needs to perform. The correct specification should always be selected based on the project requirements.
Can geotextiles be used with geogrids?
Yes. Geotextiles and geogrids are often installed together. The geotextile provides separation and filtration, while the geogrid reinforces the aggregate layer and improves load distribution.
Can geotextiles protect geomembranes?
Yes. Protection geotextiles are commonly installed above and below geomembranes to help reduce the risk of puncture damage during installation and throughout the life of the system.
Conclusion
Geotextiles are one of the most versatile products used in modern construction and civil engineering. Whether the objective is to separate materials, improve drainage, reinforce weak ground or protect sensitive liners, selecting the correct geotextile is essential to achieving long-term performance.
Rather than choosing a product based purely on its weight or appearance, always consider the engineering function it needs to perform. By understanding the role of woven, non-woven and protection geotextiles, you can select the most appropriate solution for your project with confidence.
