Zedex Fixing Strip 25mm x 2metre (8mm holes)

Visqueen Zedex DPC Surface Fixing System

Secure and reliable surface fixing solution for DPC cavity trays and preformed units in masonry, insulation, and timber frame substrates.

Features & Benefits

• Designed for use with Visqueen DPC and cavity tray systems

• Enables surface fixing to various substrates: masonry, timber, insulation

• Pre-drilled fixing strip simplifies installation

• Part of a fully integrated DPC system

Product Components

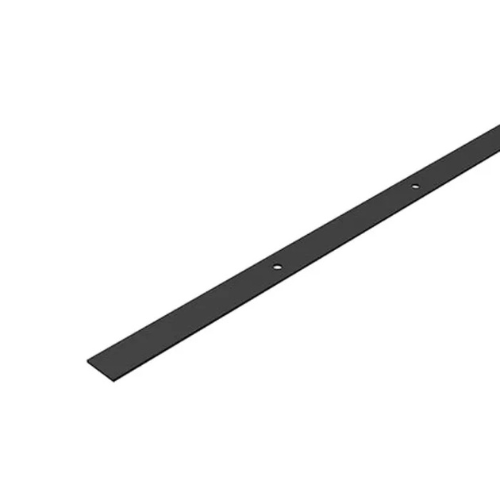

1. Fixing Strip – 2m long, black plastic, predrilled at 150mm centres

2. Fixing Pins for Masonry – Ø6.5mm x 40mm grey plastic, 50/box

3. Fixing Pins for Insulation – Ø8mm x 35mm black plastic, 500/bag

Standards & Approvals

• ISO 9001:2015 – Quality

• ISO 45001:2018 – Health & Safety

• ISO 14001:2015 – Environmental

Installation

• Masonry substrates: Prime surface, apply Butyl Tape, fix with strip and masonry pins (6.5mm x 50mm holes required)

• Timber/board substrates: As above, using stainless steel fixings

• Insulation: Apply Butyl Tape, fix with insulation pins via pilot holes

• Temperature: Install above 5°C

• Ensure substrate is clean, dry, and free of sharp protrusions

Applications

• Use with Visqueen surface fixed cavity trays and preformed units

• Ideal for secure fixing in complex junctions and detailing
