Description

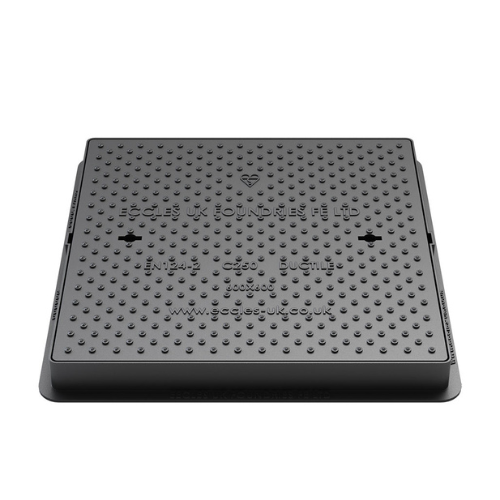

The DU091 600 x 600 x 70mm C250 Double Seal Ductile Iron Manhole Cover is a premium access cover manufactured from high-strength spheroidal graphite ductile iron for commercial and infrastructure projects requiring enhanced sealing performance. Certified to BS EN124-2:2015 and carrying the BSI Kitemark, it is suitable for Group 3 installations, including kerbside locations extending up to 500mm into the carriageway.
As part of the Eccles EasySeal range, the DU091 incorporates a double rubber sealing system, providing improved air tightness, reducing odour escape and helping minimise surface water ingress. The double seal also reduces cover movement, helping to deliver quieter operation in areas subject to regular vehicle traffic.
Featuring a 600 x 600mm clear opening, 742 x 742mm overall frame and 70mm frame depth, the DU091 is suitable for both new installations and replacement projects. Its SmartGrip® anti-slip surface provides excellent slip resistance in wet and dry conditions, while the durable black coated finish delivers long-term protection in demanding environments.
Whether specified for commercial developments, retail parks, business parks, foul drainage systems or utility infrastructure, the DU091 offers an excellent combination of durability, safety and enhanced sealing performance.
Key Features
- C250 Load Class (250kN Test Load)
- Double Rubber Sealing System
- Enhanced Odour Control
- Reduced Surface Water Ingress
- Quieter Operation Under Traffic
- 600 x 600mm Clear Opening
- 742 x 742mm Overall Frame
- 70mm Frame Depth
- SmartGrip® Anti-Slip Surface
- Manufactured from Spheroidal Graphite Ductile Iron
- BSI Kitemark Approved
- BS EN124-2:2015 Certified
- Black Protective Coating
- Optional Locking Available
- Optional Vented Version
- Optional Customer Badging
Typical Applications
- Commercial Developments
- Retail Parks
- Business Parks
- Car Parks
- Service Yards
- Utility Chambers
- Foul Drainage Systems
- Surface Water Drainage
- Electrical Infrastructure
- Telecom Chambers
- Kerbside Installations (Group 3)
Why Buy From Drainage & Civils Direct?
Genuine Eccles EasySeal Product
Nationwide UK Delivery
Competitive Trade Pricing
Technical Product Support
Bulk Project Quotations Available
Trusted Supplier to Civil Engineering, Groundworks and Utility Contractors
Prefer another manufacturer? We also supply the Wrekin DMS1C3/6060/K 600 x 600mm C250 Safeseal Ductile Iron Manhole Cover, offering a high-quality alternative featuring Wrekin’s proven Safeseal® labyrinth sealing system and anti-slip chequer surface.
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Returns are subject to a restocking fee and haulage which will be deducted from your refund.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
By completing your order, you acknowledge and accept these delivery and return terms.
- Product Code: DU091
- Load Class: C250 (250kN Test Load)
- Clear Opening: 600 x 600mm
- Overall Frame Size: 742 x 742mm
- Frame Depth: 70mm
- Material: Spheroidal Graphite Ductile Iron (EN 1563:2018)
- Cover Type: Solid Top Double Seal Access Cover
- Seal Type: Double Rubber Seal
- Surface Finish: Black Protective Coating
- Slip Resistance: SmartGrip® Anti-Slip Surface (PSRV >70)
- Certification: BSI Kitemark Approved
- Standard: BS EN124-2:2015
- Application Group: Group 3 – Kerbside areas extending up to 500mm into the carriageway
- Optional Extras: Locking, Vented, Customer Badging
What is the DU091 suitable for?
The DU091 is designed for commercial developments, business parks, retail parks, service yards, utility infrastructure and kerbside installations requiring a C250 rated access cover.
What are the benefits of a double seal?
The double rubber sealing system helps reduce odour escape, minimise surface water ingress and reduce cover movement, providing quieter operation in trafficked areas.
Is this suitable for foul drainage chambers?
Yes. The enhanced sealing performance makes the DU091 particularly suitable for foul drainage and utility chambers where odour control is important.
Can this cover be locked?
Yes. Optional locking mechanisms are available, together with vented and customer badging options.
Is this suitable for highways?
The DU091 is suitable for Group 3 applications, including kerbside locations extending up to 500mm into the carriageway. For main carriageways carrying continuous heavy traffic, a D400 manhole cover should normally be specified.
