Description

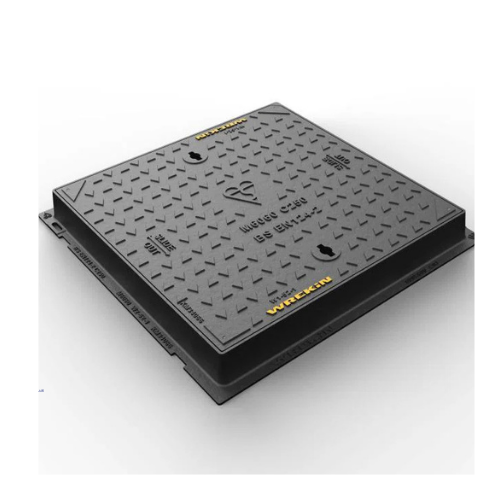

The Wrekin DMS1C3/6060/K 600 x 600 x 75mm C250 Safeseal Ductile Iron Manhole Cover is a premium access cover designed for commercial and civil engineering projects requiring a durable, secure and long-lasting drainage solution. Manufactured from high-quality ductile iron and certified to BS EN 124-2, this BSI Kitemark approved cover is designed for Group 3 applications, including kerbside areas extending up to 500mm into the carriageway.
The cover incorporates Wrekin’s Safeseal labyrinth sealing system, helping to reduce odour escape while protecting against surface water ingress into the chamber. The chequered anti-slip surface has been independently tested by a UKAS-accredited laboratory and achieves a PSRV of 70–84, providing excellent grip in both wet and dry conditions for improved safety in trafficked environments.
Featuring a 600 x 600mm clear opening, 710 x 710mm overall frame and 75mm frame depth, the DMS1C3/6060/K is suitable for both new installations and replacement projects across commercial developments, retail parks, business parks, drainage infrastructure and utility networks. Optional features including screw locking, neoprene sealing, flood and odour control plates, safety grilles and pressure relief holes allow the cover to be tailored to specific project requirements.
Whether you’re replacing an existing access cover or specifying products for a new infrastructure project, the Wrekin Safeseal range delivers the quality, durability and engineering expertise expected from one of the UK’s leading manufacturers of access covers.
Key Features
- C250 Load Class (250kN Test Load)
- Wrekin Safeseal® Labyrinth Sealing System
- Helps Reduce Odour Escape
- Protects Against Surface Water Ingress
- 600 x 600mm Clear Opening
- 710 x 710mm Overall Frame
- 75mm Frame Depth
- Manufactured from High-Strength Ductile Iron
- Independently Tested Anti-Slip Chequer Surface (PSRV 70–84)
- BSI Kitemark Certified
- Manufactured to BS EN 124-2
- Black Protective Finish
- Optional Screw Locking Available
- Optional Neoprene Seal
- Optional Flood & Odour Control Plate
- Optional Safety Grille
- Optional Pressure Relief Holes
- Optional Industry Standard Badging
Typical Applications
- Commercial Developments
- Retail Parks
- Business Parks
- Car Parks
- Service Yards
- Distribution Centres
- Utility Access Chambers
- Foul Drainage Chambers
- Surface Water Drainage
- Electrical Infrastructure
- Telecommunications Chambers
- Public Realm Projects
- Civil Engineering Projects
- Kerbside Installations (Group 3)
Why Choose This Manhole Cover?
- Manufactured by trusted UK manufacturer Wrekin Products.
- Safeseal® labyrinth sealing system helps reduce odour escape and water ingress.
- Independently tested anti-slip surface with a PSRV of 70–84.
- BSI Kitemark certified to BS EN 124-2.
- Manufactured from durable ductile iron for excellent strength-to-weight performance.
- Optional locking, sealing and flood protection accessories available.
- Suitable for a wide range of commercial and civil engineering projects.
- Fast nationwide delivery from Drainage & Civils Direct.
Looking for enhanced sealing performance? We also supply the Eccles DU091 600 x 600 x 70mm C250 Double Seal Ductile Iron Manhole Cover, featuring a premium double rubber sealing system for applications where enhanced odour control and reduced water ingress are required.
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Returns are subject to a restocking fee and haulage which will be deducted from your refund.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
By completing your order, you acknowledge and accept these delivery and return terms.
- Manufacturer: Wrekin
- Product Code: DMS1C3/6060/K
- Range: Safeseal
- Load Class: C250 (250kN Test Load)
- Clear Opening: 600 x 600mm
- Overall Frame Size: 710 x 710mm
- Base Opening: 650 x 650mm
- Frame Depth: 75mm
- Material: Ductile Iron
- Frame Shape: Square
- Cover Type: Solid Top Safeseal Access Cover
- Seal Type: Labyrinth Seal
- Surface Finish: Chequered Anti-Slip Surface
- Slip Resistance: PSRV 70–84
- Certification: BSI Kitemark
- Standard: BS EN 124-2
- Application Group: Group 3
- Weight: 50.1kg
- Optional Extras: Screw Locking, Neoprene Seal, Flood & Odour Control Plate, Safety Grille, Pressure Relief Holes, Industry Standard Badging
What is the Wrekin DMS1C3/6060/K suitable for?
It is ideal for commercial developments, business parks, retail parks, service yards, utility infrastructure and kerbside applications requiring a C250 rated access cover.
What is the Safeseal labyrinth sealing system?
The Safeseal labyrinth seal is designed to help reduce odour escape while protecting the chamber against surface water ingress, making it well suited to drainage and foul water applications.
What are the dimensions?
- Clear Opening: 600 x 600mm
- Overall Frame: 710 x 710mm
- Frame Depth: 75mm
- Base Opening: 650 x 650mm
Is this cover slip resistant?
Yes. The chequered anti-slip surface has been independently tested by a UKAS-accredited laboratory and achieves a PSRV of 70–84, providing excellent grip in wet and dry conditions.
Can this cover be supplied with locking?
Yes. Optional features include screw locking, neoprene seals, flood and odour control plates, safety grilles, pressure relief holes and industry-standard badging.
Is this suitable for highways?
This cover is suitable for Group 3 applications, including kerbside locations extending up to 500mm into the carriageway. For main carriageways carrying continuous heavy traffic, a D400 manhole cover should normally be specified.
