Description

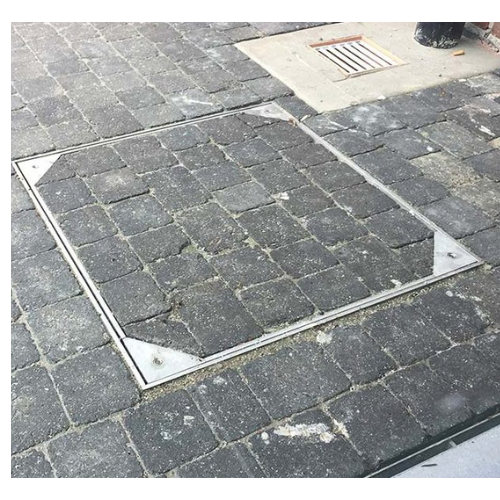

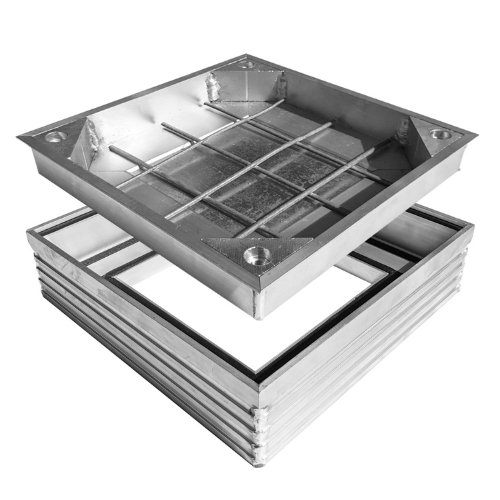

Double sealed recessed manhole covers provide a discreet access solution while offering enhanced sealing performance compared to standard access covers. Designed with a recessed aluminium tray, these covers can be infilled with paving, tile or resin finishes to create a flush surface that blends seamlessly into patios, driveways and landscaped areas.
The double sealed design incorporates a sealed frame and lid interface, helping to reduce odour transfer and limit surface water ingress into the chamber below. This makes them particularly suitable for residential installations and areas close to buildings where improved containment is required.
Sealed Manhole Cover Design
Unlike traditional solid-top covers, double sealed recessed covers feature an integrated sealing system between the frame and lid. This provides:
- Improved resistance to odour escape
- Reduced surface water and debris ingress
- Enhanced performance in residential environments
- A more secure and stable cover once infilled
The 60mm deep tray allows the surrounding surface material to be installed within the cover, ensuring a consistent and visually seamless finish.
Key Features
- Double sealed frame and lid system
- 60mm recessed tray depth for paving or tile infill
- Helps reduce odour transfer and water ingress
- Suitable for patios, driveways and landscaped areas
- Aluminium construction for durability and corrosion resistance
- Flush finish for concealed access points
Applications
Patios & External Living Areas
Allows porcelain, natural stone or concrete paving to be integrated within the cover for a seamless finish.
Driveways & Block Paving
Suitable for light-duty driveway installations requiring concealed access.
Landscaping Projects
Ideal for gardens and residential developments where visual appearance is critical.
Residential Drainage Access
Provides sealed access to inspection chambers and underground services.
Installation Guidance
- Install frame onto a full mortar or concrete bedding
- Ensure even and continuous support around the frame
- Match finished surface build-up to 60mm tray depth
- Allow bedding to cure fully before trafficking
- Use dedicated lifting keys for safe removal after installation
Recommended Installation Accessory
AccessFlow™ recessed covers should be installed and maintained using dedicated lifting keys to ensure safe removal and protect surrounding finishes.
👉 View AccessFlow™ Lifting Keys
Need help selecting the correct size?
View our Technical Guide: How to Measure a Manhole Cover.
Need enhanced sealing performance? View our Triple Sealed recessed cover range.
Plus, this specialist product is typically dispatched within 48 hours to ensure correct specification and handling.
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
Product Type: Recessed Manhole Cover
Seal Type: Double Seal
Tray Depth: 60mm
Material: Aluminium Frame & Tray
Application: External recessed access cover
Loading Classification: Pedestrian & Light Duty Vehicle (subject to correct installation)
Tray Type: Infill Recessed Tray
Finish: Mill Finish Aluminium
Installation Areas: Patios, driveways, landscaped surfaces
Corrosion Resistance: Suitable for outdoor environments
Standards: Manufactured in accordance with relevant access cover standards
