Description
The AccessFlow™ Triple Sealed & Locking recessed manhole cover provides concealed access within finished floors, patios and paved areas while incorporating a triple-sealed, locking cover and frame system.
Manufactured from aluminium, the recessed tray allows paving or tiles to be incorporated into the cover to maintain a discreet finish across the surrounding surface.
Unlike the AccessFlow™ Double Sealed range, which is self-secured by the weight of its infill, the Triple Sealed configuration uses stainless-steel socket-head fixings to secure the cover to the outer frame. This makes it a suitable option where a locking recessed access cover is required.
The range is suitable for internal and external applications and incorporates three sealing interfaces between the cover and frame.
With a 60mm overall cover depth and 41mm in-tray depth, the TSL-60 configuration is suitable for a range of internal and external applications. Load performance varies by cover size, so the required loading and individual product specification should be confirmed before ordering.
Available Sizes
The AccessFlow™ Triple Sealed 60mm range is available in the following clear opening sizes:
- 150 x 150mm – 240 x 240mm overall frame
- 200 x 200mm – 290 x 290mm overall frame
- 300 x 300mm – 390 x 390mm overall frame
- 400 x 400mm – 490 x 490mm overall frame
- 450 x 450mm – 540 x 540mm overall frame
- 600 x 450mm – 690 x 540mm overall frame
- 600 x 600mm – 690 x 690mm overall frame
- 675 x 675mm – 765 x 765mm overall frame
- 750 x 600mm – 840 x 690mm overall frame
- 750 x 750mm – 840 x 840mm overall frame
- 900 x 600mm – 990 x 690mm overall frame
- 900 x 900mm – 990 x 990mm overall frame
- 1000 x 1000mm – 1090 x 1090mm overall frame
Please note: The sizes above refer to the clear opening. Overall frame dimensions are larger and should always be checked before ordering or preparing the installation.
Key Features
- Triple sealed recessed aluminium access cover
- Locking cover and frame configuration
- 60mm overall cover depth
- 41mm in-tray depth
- Designed to accommodate paving and tile finishes
- Suitable for internal and external applications
- Stainless-steel socket-head fixings secure the cover to the frame
- Manufacturer-rated for car applications up to a maximum 40kN load (load performance can vary by cover size – please confirm the required loading before ordering).
- Reinforced recessed tray construction
- Clear openings from 150 x 150mm to 1000 x 1000mm
- Lifting keys supplied
Applications
Suitable applications include:
- Internal tiled floors and access points

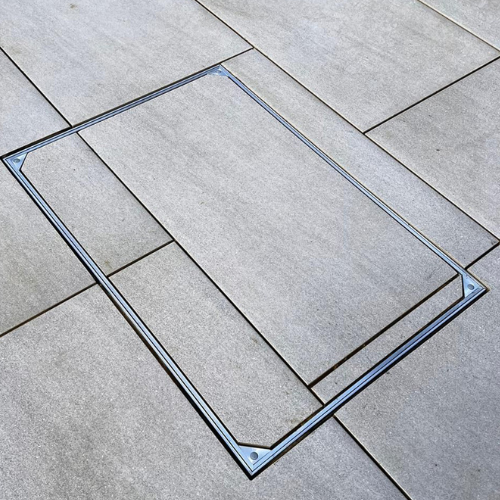

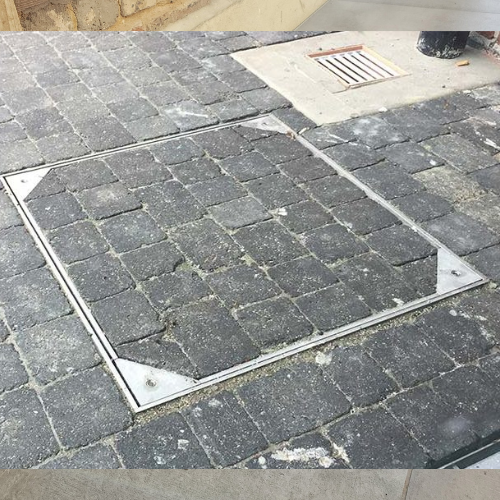

- Patios and paved areas
- Pathways and pedestrian areas
- Pool surrounds
- Residential driveways within the manufacturer’s stated loading
- Landscaped areas
- Internal or external locations requiring a locking, recessed access cover
Installation Guidance
- Install the frame onto a suitable full mortar or concrete bedding.
- Ensure continuous support beneath the frame edges.
- Allow for the 41mm in-tray depth when determining the finished surface build-up.
- Allow bedding materials to cure fully before trafficking.
- Confirm the required clear opening and overall frame dimensions before ordering.
- Ensure the cover is correctly secured using the supplied locking arrangement.
Replacement Lifting Keys
Replacement AccessFlow™ lifting keys are available separately for safe removal and access to recessed covers.
Unsure which size you need?
Measure the clear opening of the chamber rather than the dimensions of an existing cover or frame.
View our Technical Guide: How to Measure a Manhole Cover.
Don’t require a locking triple-sealed cover?
View our Double Sealed Recessed Cover Range for an exterior, self-secured alternative.
Dispatch: This specialist product is typically dispatched with tracked delivery within 48 hours, subject to stock availability.
Delivery: Delivery charges are calculated in your cart at checkout. Larger sizes may require specialist delivery; please contact us before ordering if your site has restricted access.
Please check the clear opening, overall frame dimensions and required loading before ordering. If you need help selecting the correct recessed cover, contact our team on 0333 880 3558 or info@drainageandcivilsdirect.co.uk.
Plus, this specialist product is typically dispatched within 48 hours to ensure correct specification and handling.
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
- Product Range: AccessFlow™ Triple Sealed & Locking
- Product Type: Triple sealed locking recessed access cover
- Material: Aluminium
- Overall Depth: 60mm
- In-Tray Depth: 41mm
- Sealing: Triple sealed
- Securing Method: Stainless-steel socket-head fixings
- Load Performance: Manufacturer-rated for car applications up to a maximum 40kN load; performance can vary by cover size – please confirm the required loading before ordering.
- Applications: Internal and external
- Infill: Paving / tiles
- Clear Opening Range: 150 x 150mm to 1000 x 1000mm
- Lifting Keys: Supplied
- Reinforced Tray: Yes
What size Triple Sealed recessed manhole cover do I need?
Select the cover based on the clear opening of the chamber, not the dimensions of the existing cover or frame. The AccessFlow™ Triple Sealed range is available in clear openings from 150 x 150mm up to 1000 x 1000mm. Always check the overall frame dimensions before ordering. If you are unsure how to measure, see our Technical Guide: How to Measure a Manhole Cover.
Does the 60mm measurement refer to the tray depth?
No. The TSL-60 has a 60mm overall cover depth and a 41mm in-tray depth. The 41mm measurement is therefore the important dimension when considering the paving or tile build-up within the recessed tray.
Can the AccessFlow™ Triple Sealed cover be used on a driveway?
Yes, the manufacturer rates the TSL-60 configuration for car applications up to a maximum 40kN load. Load performance can vary by cover size, so please confirm the required loading and individual cover specification before ordering.
What is the difference between Double Sealed and Triple Sealed recessed covers?
The AccessFlow™ Double Sealed range is designed primarily for exterior applications and is self-secured by the weight of the infill. The Triple Sealed range incorporates an additional sealing interface and stainless-steel locking fixings, making it suitable for internal and external locations where a locking recessed cover is required. View our Double Sealed Recessed Cover Range if locking is not required.
Can the Triple Sealed recessed cover be installed indoors?
Yes. The manufacturer recommends the Triple Sealed range for both internal and external applications. This makes it suitable for applications such as internal tiled floors as well as patios, paving and other external finished surfaces.
What finishes can be installed inside the recessed tray?
The recessed aluminium tray is designed to accommodate paving and tile finishes, allowing the access cover to blend into the surrounding finished surface. The TSL-60 provides a 41mm in-tray depth for the selected finish and bedding materials.
Are lifting keys supplied with the cover?
Yes. Lifting keys are supplied with the AccessFlow™ recessed cover. Replacement AccessFlow™ lifting keys are also available separately if additional or replacement keys are required.
Is the Triple Sealed recessed cover waterproof and odour sealed?
The manufacturer’s TSL-Pro-Line is described as an odour and waterproof triple-sealed system. Correct installation, sealing and maintenance of the cover and surrounding construction are important to achieving the intended performance.
