Description
The 750 x 750 x 50mm B125 Safeseal Ductile Iron Manhole Cover is a premium-quality access cover manufactured by Wrekin for residential and light commercial drainage applications where a 750 × 750mm clear opening is required. Manufactured from high-strength ductile iron and certified to BS EN 124-2 Class B125, it delivers dependable long-term performance in areas subject to occasional light vehicle traffic.
Designed with Wrekin’s proven Safeseal labyrinth sealing system, the cover helps minimise odour escape while reducing water ingress into the chamber. Unlike conventional flat sealing systems, the engineered labyrinth profile provides enhanced sealing performance while allowing straightforward maintenance access.
The cover features a high-performance chequer plate surface independently tested by a UKAS-accredited laboratory to achieve a PSRV between 70 and 84, providing excellent slip resistance in both wet and dry conditions. Safety keyways, tapered frame sides and central lifting points are incorporated to assist safer handling and simplify cover removal during maintenance.
Manufactured from durable ductile iron and backed by BSI Kitemark certification and CCPI assessment, the cover can also be supplied with optional screw locking, neoprene seals, safety grilles, pressure relief holes, flood and odour control plates and utility badging, making it suitable for a wide variety of drainage and utility applications.
Whether you’re replacing an existing chamber cover or specifying a premium drainage solution for a new development, the 750 x 750 B125 Wrekin Safeseal offers outstanding engineering, long-term durability and trusted third-party certification.
Key Features
- 750 × 750mm Clear Opening
- B125 Load Class certified to BS EN 124-2.
- Safeseal Labyrinth Seal helps reduce odour escape and water ingress.
- PSRV 70–84 Slip Resistance independently tested by a UKAS-accredited laboratory.
- BSI Kitemark Certified
- CCPI Assessed Product
- High-Strength Ductile Iron Construction
- 50mm Frame Depth
- Safety Keyways assist safer lifting operations.
- Tapered Frame Design allows smoother cover removal.
- Optional Screw Locking
- Optional Neoprene Seal
- Optional Safety Grille
- Optional Flood & Odour Control Plate
- Optional Pressure Relief Holes
Typical Applications
- Domestic driveways
- Residential developments
- Private parking areas
- Utility inspection chambers
- Housing developments
- Schools
- Public realm landscaping
- Light commercial premises
- Hard landscaped areas with occasional vehicle access
Looking for a More Cost-Effective Alternative?
If you require a certified BS EN 124-2 B125 manhole cover but don’t need the additional engineering features of the Wrekin Safeseal range, our Eccles EasySeal equivalent offers excellent performance and value for residential and light commercial projects.
View our Eccles EasySeal Alternative
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Returns are subject to a restocking fee and haulage which will be deducted from your refund.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
By completing your order, you acknowledge and accept these delivery and return terms.

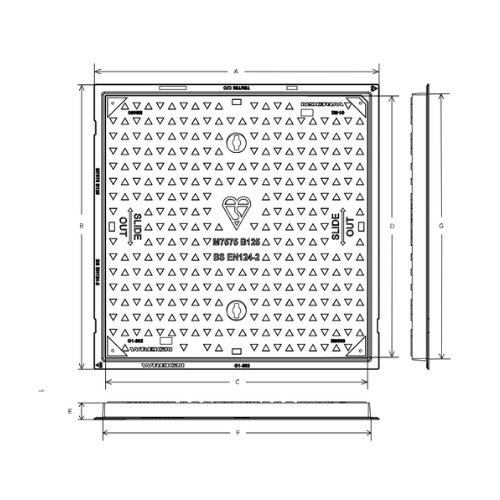

- Manufacturer: Wrekin
- Product Code: DMS1B2/7575/K
- Product Range: Safeseal
- Clear Opening: 750 × 750mm
- Overall Frame Size: 850 × 850mm
- Base Opening: 790 × 790mm
- Frame Depth: 50mm
- Load Class: B125
- BS EN Group: Group 2
- Material: Ductile Iron
- Weight: 58.5kg
- Frame Shape: Square
- Cover Shape: Square
- Seal Type: Labyrinth Seal
- Slip Resistance: PSRV 70–84
- Certification: BSI Kitemark
- CCPI Assessed: Yes
- Standard: BS EN 124-2
- Optional Extras: Screw Locking, Neoprene Seal, Safety Grille, Flood & Odour Control Plate, Pressure Relief Holes and Standard Utility Badging.
The Wrekin Safeseal range is designed for customers who want a premium engineered access cover with enhanced sealing performance and a wide choice of specification options.
- Labyrinth Seal Technology – Helps minimise odour escape while reducing water ingress.
- Premium Wrekin Engineering – Manufactured by one of the UK’s leading access cover specialists.
- Outstanding Slip Resistance – Independently tested to achieve a PSRV between 70 and 84.
- CCPI Assessed – Independently assessed under the Code for Construction Product Information.
- BSI Kitemark Certified – Tested and certified to BS EN 124-2.
- Safer Handling Design – Safety keyways, tapered frame sides and central lifting points improve maintenance operations.
- Flexible Specification – Optional locking, sealing, flood protection and safety grilles available.
- Long-Term Durability – Manufactured from high-strength ductile iron for demanding drainage applications.
