Description
Geoworks TerraTrack Pro 300gsm Non-Woven Geotextile is a heavy-duty geotextile membrane designed for demanding separation, filtration and protection applications within civil engineering, drainage, landscaping and Sustainable Drainage Systems (SuDS).
Manufactured from durable synthetic fibres, the membrane allows water to pass freely while preventing the migration of fine soil particles into the aggregate layer. Its robust 300gsm construction provides enhanced puncture resistance and long-term performance, making it suitable for projects where lighter-weight geotextiles may not offer sufficient protection.
In addition to its use in equestrian arenas, access tracks and ground stabilisation works, TerraTrack Pro 300gsm is widely used as a protection fleece for HDPE geomembranes in attenuation tank encapsulation systems. Installed above and/or below the impermeable liner, it helps protect the membrane from puncture during installation and backfilling, extending the life of the waterproofing system.

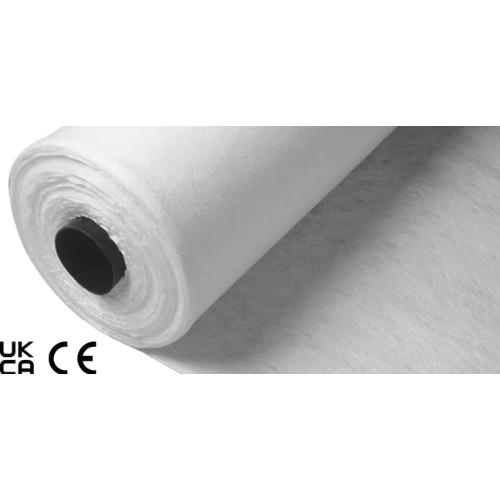

The 2.25m x 90m contractor roll is ideal for larger commercial projects requiring extensive coverage with fewer joints and faster installation.
As well as providing separation and filtration, this 300gsm non-woven geotextile is commonly used as a protection fleece for HDPE geomembranes in impermeable attenuation tank systems. Installed above and below the liner, it helps reduce the risk of puncture during installation and backfilling, contributing to a durable, long-lasting waterproofing solution.
Want to understand why 300gsm protection fleece is commonly specified with impermeable liners? Read our guide on Do You Need Protection Fleece for an Attenuation Tank Geomembrane? to learn how it helps protect geomembranes during installation and backfilling.
Key Features
- Heavy-duty 300gsm non-woven geotextile
- Designed for separation, filtration and protection
- Excellent puncture resistance and durability
- High water permeability
- Prevents contamination of aggregate layers
- Suitable as a protection fleece for HDPE geomembranes
- Ideal as a protection fleece for HDPE geomembrane attenuation tank systems
- Easy to handle and install
- Suitable for civil engineering, drainage and landscaping projects
Our 0.6mm vs 1.0mm HDPE Geomembrane guide also explains why a 300gsm protection fleece is recommended to help protect impermeable liners during installation and backfilling.
Typical Applications
• Protection fleece for attenuation tank geomembranes
• Equestrian arena construction
• Zoo enclosures and animal habitats
• Separation layer beneath sub-base aggregates
• Drainage and filtration layers
• Landscaping and garden projects
• Ground stabilisation works
• Access tracks and pathways
Recommended Accessories
For complete attenuation tank liner systems, consider pairing this product with:
- 0.6mm HDPE Impermeable Geomembrane (2.5m x 50m)
- 0.6mm HDPE Impermeable Geomembrane (5.1m x 100m)
- Double-Sided Butyl Jointing Tape
- Single-Sided Jointing Tape
- Top Hat Units for pipe penetrations
Delivery Information
This product is typically available for fast dispatch within 48 hours, with most deliveries arriving within 2–3 working days depending on location and stock availability.
Orders are delivered directly to site using specialist transport. As geotextile rolls can be bulky, deliveries are often made using large goods vehicles. Please advise at the time of ordering if there are any access restrictions, narrow roads or unloading limitations at the delivery location so suitable arrangements can be made.
Need help choosing the right geotextile? Contact our team for advice on suitable grades and roll sizes for your project on 03338803558 or info@drainageandcivilsdirect.co.uk and we’ll point you to the right product and get it delivered fast.
Product Code: GTTERRAPRO/225X90
Roll Size: 2.25m x 90m
Material: Non-Woven Geotextile
Weight: 300g/m²
Tensile Strength: 22kN/m (MD & CMD)
Elongation at Maximum Load: 50–55%
CBR Puncture Resistance: 4000N
Dynamic Perforation Resistance: 12mm
Water Permeability: 60 L/m²/s
Characteristic Opening Size: 90μm
Thickness (2kPa): 2.4mm
Certification: CE Marked
Can this be used as a protection fleece for HDPE geomembranes?
Yes. The 300gsm construction makes it well suited for protecting 0.6mm HDPE geomembranes in attenuation tank encapsulation and waterproofing applications.
Is this suitable for attenuation tanks?
Yes. It is commonly installed above and below impermeable geomembranes to provide cushioning and reduce the risk of puncture during installation and backfilling.
Can it be used for equestrian projects?
Absolutely. It is widely used beneath equestrian arena surfaces to provide separation and improve long-term performance.
Is this a permeable membrane?
Yes. The non-woven construction allows water to pass through while retaining soil particles and preventing contamination of aggregate layers.
