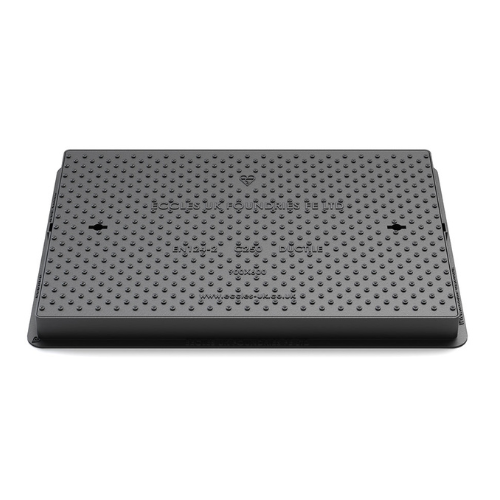

Description
The DU032 900 x 600 x 70mm C250 Single Seal Ductile Iron Manhole Cover is a heavy-duty access cover manufactured from high-strength spheroidal graphite ductile iron for commercial, infrastructure and civil engineering projects. Certified to BS EN124-2:2015 and carrying the BSI Kitemark, it is suitable for Group 3 applications, including kerbside locations extending up to 500mm into the carriageway.
Part of the Eccles EasySeal® range, the DU032 incorporates a single sealing system engineered to provide an airtight seal when packed with grease. Combined with the SmartGrip® anti-slip surface, it delivers excellent slip resistance, durability and long-term reliability in demanding commercial environments.
Featuring a 900 x 600mm clear opening, 1010 x 710mm overall frame and 70mm frame depth, the DU032 is suitable for both new installations and replacement projects. Optional rubber seals, locking mechanisms, vented covers and customer badging allow the cover to be specified to meet individual project requirements.
Whether you’re specifying access covers for commercial developments, service yards, retail parks, utility infrastructure or drainage systems, the DU032 provides an excellent combination of strength, reliability and value.
Key Features
- C250 Load Class (250kN Test Load)
- EasySeal® Single Seal Design
- Provides an Airtight Seal When Packed with Grease
- 900 x 600mm Clear Opening
- 1010 x 710mm Overall Frame
- 70mm Frame Depth
- SmartGrip® Anti-Slip Surface (PSRV >70)
- Manufactured from Spheroidal Graphite Ductile Iron
- BSI Kitemark Certified
- Manufactured to BS EN124-2:2015
- Black Protective Coating
- Excellent Strength-to-Weight Ratio
- Optional Rubber Seal
- Optional Locking
- Optional Vented Cover
- Optional Customer Badging
Typical Applications
- Commercial Developments
- Business Parks
- Retail Parks
- Distribution Centres
- Service Yards
- Car Parks
- Utility Access Chambers
- Foul Drainage Chambers
- Surface Water Drainage
- Electrical Infrastructure
- Telecommunications Chambers
- Civil Engineering Projects
- Kerbside Installations (Group 3)
Why Choose This Manhole Cover?
- Genuine Eccles EasySeal® product.
- Popular 900 x 600mm commercial size.
- Excellent value single seal access cover.
- SmartGrip® anti-slip technology for improved safety.
- BSI Kitemark certified to BS EN124-2:2015.
- Manufactured from high-strength ductile iron for long service life.
- Optional locking, venting and sealing upgrades available.
- Fast nationwide delivery from Drainage & Civils Direct.
Prefer another manufacturer? We also supply the Wrekin 900 x 600mm C250 Safeseal Ductile Iron Manhole Cover, offering a high-quality alternative featuring Wrekin’s proven Safeseal® labyrinth sealing system.
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Returns are subject to a restocking fee and haulage which will be deducted from your refund.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
By completing your order, you acknowledge and accept these delivery and return terms.
- Product Code: DU032
- Load Class: C250 (250kN Test Load)
- Clear Opening: 900 x 600mm
- Overall Frame Size: 1010 x 710mm
- Frame Depth: 70mm
- Material: Spheroidal Graphite Ductile Iron (EN 1563:2018)
- Cover Type: Solid Top Single Seal Access Cover
- Seal Type: EasySeal® Single Seal
- Surface Finish: Black Protective Coating
- Slip Resistance: SmartGrip® Technology (PSRV >70)
- Certification: BSI Kitemark
- Standard: BS EN124-2:2015
- Application Group: Group 3 – Kerbside areas extending up to 500mm into the carriageway
- Optional Extras: Rubber Seal, Locking, Vented Cover, Customer Badging
What is the DU032 suitable for?
The DU032 is ideal for commercial developments, retail parks, business parks, service yards, utility chambers and kerbside installations requiring a C250 rated ductile iron manhole cover.
Is the DU032 sealed?
Yes. The DU032 features Eccles’ EasySeal® single sealing system, engineered to provide an airtight seal when packed with grease.

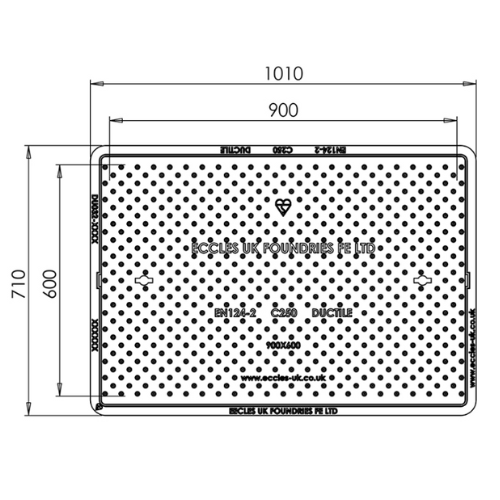

What are the dimensions?
- Clear Opening: 900 x 600mm
- Overall Frame: 1010 x 710mm
- Frame Depth: 70mm
Is there an alternative manufacturer?
Yes. We also supply the Wrekin 900 x 600mm C250 Safeseal Ductile Iron Manhole Cover, providing an excellent alternative from another leading UK manufacturer for commercial and civil engineering applications.
Can this cover be supplied with locking?
Yes. Optional rubber seals, locking mechanisms, vented covers and customer badging are available to suit specific project requirements.
Is this suitable for highways?
The DU032 is designed for BS EN124 Group 3 applications, including kerbside areas extending up to 500mm into the carriageway. For main carriageways carrying continuous heavy traffic, a D400 manhole cover should normally be specified.
Do you offer bulk pricing?
Yes, trade pricing and project rates are available for larger quantities. Contact us for a quotation.
