Description
The DU112 600 x 450 x 70mm C250 Double Seal Ductile Iron Manhole Cover is a premium access cover designed for commercial and light traffic environments where a higher level of sealing performance is required. Manufactured from high-strength spheroidal graphite ductile iron, it combines the durability of a traditional C250 cover with the added benefits of a double rubber sealing system, helping to reduce odour escape, minimise surface water ingress and provide quieter in-service performance.
Certified to BS EN124-2:2015 and carrying the BSI Kitemark, the DU112 is suitable for Group 3 installations, including kerbside locations extending up to 500mm into the carriageway, commercial premises, business parks, service yards and car parks. The integrated SmartGrip® anti-slip surface provides excellent skid resistance in both wet and dry conditions, making it a dependable choice for areas regularly accessed by cars and light commercial vehicles.
Unlike standard solid top covers, the DU112 belongs to the EasySeal range, offering enhanced sealing performance for projects where odour control, reduced water ingress or quieter operation are important considerations. This makes it particularly well suited to foul drainage chambers, utility infrastructure and service ducts located close to occupied buildings or public spaces.

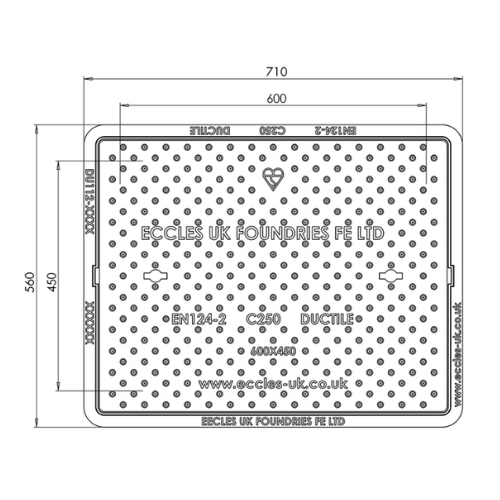

With a 600 x 450mm clear opening, 710 x 560mm overall frame and 70mm frame depth, the DU112 offers straightforward installation into new and existing chamber constructions. Optional locking, venting and badging are also available for projects requiring additional security or bespoke specifications.
Whether you’re specifying drainage infrastructure for a commercial development, replacing an existing access cover or sourcing products for a highways or civil engineering project, the DU112 delivers the strength, reliability and sealing performance expected from the Eccles EasySeal range.
Key Features
- C250 load rating (250kN)
- Double rubber sealing system
- Reduces odour escape
- Helps prevent surface water ingress
- Minimises cover movement and traffic noise
- 600 x 450mm clear opening
- 710 x 560mm overall frame
- 70mm frame depth
- SmartGrip anti-slip surface
- Manufactured from ductile iron
- BSI Kitemark certified
- BS EN124-2:2015 compliant
- Black coated finish
- Optional locking available
- Optional vented version available
Typical Applications
The DU112 is particularly suited to:
- Commercial developments
- Retail parks
- Business parks
- Service yards
- Car parks
- Foul drainage chambers
- Utility access chambers
- Sewage infrastructure
- Kerbside installations (Group 3)
- Areas where odour control is important
Looking for a more economical alternative? If enhanced sealing isn’t required, our DU023 600 x 450 x 70mm C250 Ductile Iron Manhole Cover offers the same C250 loading and dimensions in a standard solid top design.
Need another manufacturer? We also stock the 600 x 450 x 75mm C250 Wrekin Safeseal Ductile Iron Manhole Cover, providing an excellent alternative where lead times or project specifications differ.
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Returns are subject to a restocking fee and haulage which will be deducted from your refund.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
By completing your order, you acknowledge and accept these delivery and return terms.
- Product Code: DU112
- Load Class: C250 (250kN Test Load)
- Clear Opening: 600 x 450mm
- Overall Frame Size: 710 x 560mm
- Frame Depth: 70mm
- Material: Spheroidal Graphite Ductile Iron (EN 1563:2018)
- Cover Type: Solid Top Double Seal Access Cover
- Seal Type: Double Rubber Seal
- Surface Finish: Black Protective Coating
- Slip Resistance: SmartGrip® Anti-Slip Surface (PSRV >70)
- Certification: BSI Kitemark Approved
- Standard: BS EN124-2:2015
- Application Group: Group 3 – Kerbside areas extending up to 500mm into the carriageway
- Optional Extras: Locking, Vented, Customer Badging
What makes the DU112 different from the DU023?
Both covers share the same 600 × 450mm clear opening, 70mm frame depth and C250 load rating, but the DU112 incorporates a double rubber sealing system, making it better suited to applications where improved odour control, reduced water ingress and quieter operation are required.
What are the benefits of a double seal?
A double seal helps:
- Reduce unpleasant odours escaping from below ground.
- Limit rainwater entering the chamber.
- Reduce cover movement and rattling.
- Improve long-term performance.
Is this suitable for foul drainage chambers?
Yes. The double sealing system makes the DU112 an excellent choice for foul drainage and sewer applications where a tighter seal is desirable.
Can this cover be locked?
Yes. Locking options are available where additional security is required.
Is this cover suitable for highways?
The DU112 is designed for C250 Group 3 loading, making it suitable for kerbside locations, commercial vehicle areas and similar applications. For main carriageways carrying continuous heavy traffic, a D400 or Highways cover would normally be specified.
What are the dimensions?
- Clear opening: 600 × 450mm
- Overall frame: 710 × 560mm
- Frame depth: 70mm
