Description

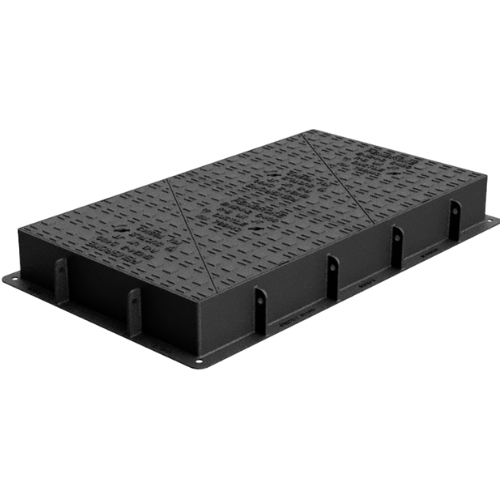

The 1220 x 675 x 150mm E600 Ductile Iron Manhole Cover & Frame is a heavy-duty access cover designed for areas subject to exceptionally high wheel loads. Rated E600 Group 5, it provides a large rectangular clear opening for demanding infrastructure and commercial applications where an E600 load classification is specified.
Manufactured from high-strength GJS-500-7 ductile iron, the cover incorporates a double triangular design with non-rocking 3-point suspension to provide stable seating under demanding loading conditions. The unit has a 1220 x 675mm clear opening, 1310 x 790mm overall base dimension and a substantial 150mm frame depth.
The cover and frame is manufactured to BS EN 124:2015, is BSI Kitemarked and is compliant with Highways England DMRB CD534 V0.1.0. The manufacturer identifies E600 Group 5 applications as areas experiencing exceptionally high wheel loads, including docks, aircraft pavements, transport yards and loading bays.
Key Features
- E600 Group 5 load classification
- 1220 x 675mm clear opening
- 150mm deep frame
- 1310 x 790mm overall base size
- Double triangular cover design
- Non-rocking 3-point suspension
- GJS-500-7 ductile iron construction
- BS EN 124:2015 compliant
- BSI Kitemarked
- DMRB CD534 compliant
- Closed keyways
- Black coated finish
Typical Applications
- Heavy-duty industrial areas
- Loading bays
- Transport and distribution yards
- Dock and port areas
- Aircraft pavements
- Large rectangular access chambers
- Areas subject to exceptionally high wheel loads
If an E600 load classification is not required, view our range of 1200 x 675 D400 manhole covers for alternative heavy-duty access covers in this commonly specified large-format size.
Plus, this specialist product is typically dispatched within 3–5 working days to ensure correct specification and handling.
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558Â or info@drainageandcivilsdirect.co.uk to provide professional guidance.
Product Code: 1061D
Clear Opening: 1220 x 675mm
Overall Base Size: 1310 x 790mm
Frame Depth: 150mm
Load Classification: E600 – Group 5
Cover Type: Double Triangular
Material: Ductile Iron
Material Grade: GJS-500-7
Finish: Black Coated
Suspension: Non-Rocking 3-Point Suspension
Keyways: Closed
Standard: BS EN 124:2015
Certification: BSI Kitemark
Highways Compliance: DMRB CD534 V0.1.0 Compliant
What load class is this 1220 x 675 manhole cover?
This manhole cover is rated E600 Group 5 to BS EN 124:2015. E600 covers are designed for locations subject to exceptionally high wheel loads and are suitable for demanding heavy-duty applications where this load classification is specified.
Is this a 1200 x 675 manhole cover?
The actual clear opening specified by the manufacturer is 1220 x 675mm. However, 1200 x 675mm is a commonly referenced nominal size when searching for large rectangular manhole covers. Always check the actual clear opening and overall frame dimensions against your chamber before ordering.
What are the overall frame dimensions?
The cover provides a 1220 x 675mm clear opening, while the overall frame base measures 1310 x 790mm with a 150mm frame depth. The overall dimensions should be checked carefully, particularly when replacing an existing cover and frame.
Where would an E600 manhole cover typically be used?
E600 Group 5 covers are designed for areas subject to exceptionally high wheel loads. Typical applications identified by the manufacturer include docks, aircraft pavements, transport yards and loading bays. View our full range of E600 manhole covers for other sizes and heavy-duty access cover options.
Is this E600 manhole cover CD534 compliant?
Yes. The manufacturer specifies this cover as compliant with DMRB CD534 V0.1.0. It is also manufactured to BS EN 124:2015 and is BSI Kitemarked.
What does double triangular mean?
A double triangular cover consists of two triangular cover sections seated within the frame. This product incorporates a non-rocking three-point suspension design to provide stable seating under demanding loading conditions.
What material is this manhole cover manufactured from?
The cover and frame are manufactured from GJS-500-7 ductile iron and supplied with a black coated finish. This high-strength construction is suited to demanding E600 Group 5 applications.
Can locking or other bespoke options be supplied?
The manufacturer lists options including standard and security locking, odour and flood-control plates, venting, badging, MOD security plates, reducing or restrictor plates and safety grilles. Any bespoke requirements should be confirmed before ordering.
