Description

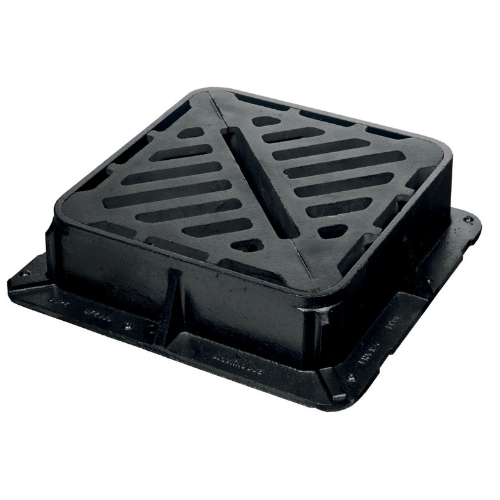

This 465 x 465mm E600 double triangular gully grate and frame forms part of the Saint-Gobain PAM Briflo heavy-duty range and our wider Gully Grates & Frames collection.
Designed for demanding applications subject to heavy wheel loads, the Briflo range provides a robust drainage solution for locations including heavy industrial areas, container handling environments and other applications requiring an E600 load classification.
The double triangular grate incorporates three-point suspension, helping provide stable, non-rock seating and quiet operation under traffic loading. The Briflo range is third-party certified and Kitemarked to the requirements of BS EN 124.
This E600 model has a 465 x 465mm clear opening, 620 x 573mm overall base dimensions and a substantial 140mm frame depth. When specifying the product for a replacement installation, always check the overall dimensions as well as the clear opening, as frame dimensions can vary between manufacturers and product ranges.
Key Features
- E600 load classification
- 465 x 465mm clear opening
- 620 x 573mm overall base dimensions
- 140mm frame depth
- Heavy-duty double triangular grate
- Three-point suspension
- Non-rock design
- Designed for quiet operation
- Third-party certified and Kitemarked to BS EN 124
- Efficient surface water clearing capacity
- Saint-Gobain PAM Briflo heavy-duty range
Typical Applications
- Heavy industrial areas
- Industrial yards
- Container handling areas
- Heavy-duty commercial sites
- Infrastructure and civils projects
- Areas subject to heavy wheel loads
- New and compatible replacement installations
- Applications requiring an E600 drainage grate
Heavy-Duty Briflo Design
The Saint-Gobain PAM Briflo range is engineered for demanding traffic conditions and exceptional wheel loads.
Its double triangular grate design uses three points of suspension to provide non-rock, quiet operation, helping maintain stable seating under repeated vehicle loading.
Briflo is also designed with efficient water-clearing capacity to aid the removal of surface water from heavily trafficked areas.
Need an F900 Version for Extreme Load Applications?
For projects specifying the higher F900 load classification, view our 465 x 465mm F900 Double Triangular Gully Grate & Frame – 140mm Deep.
The F900 Briflo version shares the same 465 x 465mm clear opening, 620 x 573mm overall dimensions and 140mm frame depth, providing a closely matched alternative where the project specification requires F900 loading.
Trade & Quantity Enquiries
Require multiple E600 gully grates or pricing for a larger civils project?
Drainage & Civils Direct welcomes trade and quantity enquiries. Contact our team for project pricing, current availability and delivery requirements.
For a more compact option, view our 450mm x 450mm E600 gully grating, commonly used in standard highway applications
Plus, enjoy fast delivery – your order can be dispatched within 48 hours, ensuring your project stays on schedule without delays.
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558Â or info@drainageandcivilsdirect.co.uk to provide professional guidance.
- Clear Opening: 465 x 465mm
- Overall / Over-Base Dimensions: 620 x 573mm
- Frame Depth: 140mm
- Load Class: E600
- Design: Double triangular
- Suspension: Three-point
- Waterway Area: 880cm²
- Mass: 47.2kg
- BS EN 124: Third-party certified and Kitemarked
- Manufacturer: Saint-Gobain PAM UK
- Range: Briflo
- SAP Code: 185973
- Previous Manufacturer Code: BZ460 1
What is the clear opening of this E600 Briflo gully grate?
The E600 Briflo grate has a 465 x 465mm clear opening. Its overall base dimensions are larger at 620 x 573mm, so both measurements should be checked when specifying the product.
What are the overall frame dimensions and depth?
The overall or over-base dimensions are 620 x 573mm, with a 140mm frame depth. These dimensions are particularly important when selecting the product for a replacement installation.
What is a double triangular gully grate?
A double triangular design uses two triangular grate sections within the frame. The Briflo design incorporates three points of suspension, which Saint-Gobain states helps provide non-rock and quiet operation.
Is the Briflo E600 gully grate certified to BS EN 124?
The Saint-Gobain PAM datasheet states that the Briflo range is third-party certified and Kitemarked to the requirements of BS EN 124.
Where are Briflo heavy-duty gully grates typically used?
Saint-Gobain recommends the Briflo range for areas subject to heavy wheel loads, including container ports and heavy industrial areas. The correct E600 or F900 load class should always be selected according to the individual project specification.
What is the waterway area of the E600 Briflo grate?
The E600 model has a stated waterway area of 880cm², designed to provide efficient surface water clearing capacity.
Is there an F900 version of this 465 x 465mm gully grate?
Yes. Saint-Gobain PAM also manufactures an F900 Briflo version with the same 465 x 465mm clear opening, 620 x 573mm overall dimensions and 140mm depth. For applications requiring F900 loading, view our 465 x 465mm F900 Double Triangular Gully Grate & Frame.
Can I get trade or bulk pricing on E600 Briflo gully grates?
Yes. Drainage & Civils Direct welcomes trade and quantity enquiries for heavy-duty gully grates. Contact our team for current availability, project quantities, pricing and delivery requirements.
