Description

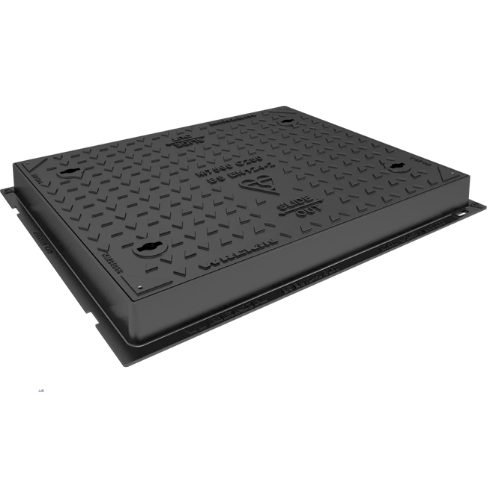

The Wrekin DMS1C3/7560/K 750 x 600 x 75mm C250 Safeseal Ductile Iron Manhole Cover is a high-performance access cover designed for commercial developments, business parks, service yards and kerbside installations where durability, safety and long-term reliability are essential. Manufactured from high-quality ductile iron and certified to BS EN 124-2, this BSI Kitemark approved cover is engineered to withstand a 250kN (25 tonne) test load, making it suitable for Group 3 applications including areas extending up to 500mm into the carriageway.
Featuring Wrekin’s proven Safeseal design, the cover incorporates a labyrinth sealing system to help reduce odour escape while protecting against surface water ingress. The chequered anti-slip surface has been independently tested by a UKAS-accredited laboratory, achieving a PSRV of 70–84, providing excellent slip resistance in both wet and dry conditions.
With a 750 x 600mm clear opening, 860 x 710mm overall frame and 75mm frame depth, the DMS1C3/7560/K is suitable for both new installations and replacement projects across a wide range of drainage and utility applications. Additional options including screw locking, neoprene seals, flood and odour control plates, safety grilles and pressure relief holes allow the cover to be specified to suit individual project requirements.
Whether you’re working on a commercial development, retail park, public realm project or civil engineering scheme, the Wrekin Safeseal range delivers the strength, safety and quality expected from one of the UK’s leading manufacturers of access covers and drainage products.
Key Features
- C250 Load Class (250kN Test Load)
- Wrekin Safeseal® Labyrinth Sealing System
- Helps Reduce Odour Escape
- Protects Against Surface Water Ingress
- 750 x 600mm Clear Opening
- 860 x 710mm Overall Frame
- 75mm Frame Depth
- Manufactured from High-Strength Ductile Iron
- Independently Tested Anti-Slip Chequer Surface (PSRV 70–84)
- BSI Kitemark Certified
- Manufactured to BS EN 124-2
- Black Protective Finish
- Optional Screw Locking Available
- Optional Neoprene Seal
- Optional Flood & Odour Control Plate
- Optional Safety Grille
- Optional Pressure Relief Holes
- Optional Industry Standard Badging
Typical Applications
- Commercial Developments
- Retail Parks
- Business Parks
- Distribution & Logistics Centres
- Service Yards
- Car Parks
- Utility Access Chambers
- Foul Drainage Chambers
- Surface Water Drainage
- Electrical Infrastructure
- Telecommunications Chambers
- Public Realm Projects
- Civil Engineering Projects
- Kerbside Installations (Group 3)
Looking for another trusted manufacturer? We also supply an Eccles 750 x 600mm C250 Ductile Iron Manhole Cover, offering the same popular size and loading classification from another leading UK manufacturer.
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Returns are subject to a restocking fee and haulage which will be deducted from your refund.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
By completing your order, you acknowledge and accept these delivery and return terms.
- Manufacturer: Wrekin
- Product Code: DMS1C3/7560/K
- Range: Safeseal
- Load Class: C250 (250kN Test Load)
- Clear Opening: 750 x 600mm
- Overall Frame Size: 860 x 710mm
- Base Opening: 800 x 650mm
- Frame Depth: 75mm
- Material: Ductile Iron
- Frame Shape: Rectangular
- Cover Type: Solid Top Safeseal Access Cover
- Seal Type: Labyrinth Seal
- Surface Finish: Chequered Anti-Slip Surface
- Slip Resistance: PSRV 70–84
- Certification: BSI Kitemark
- Standard: BS EN124-2
- Application Group: Group 3
- Weight: 59kg
- Optional Extras: Screw Locking, Neoprene Seal, Flood & Odour Control Plate, Safety Grille, Pressure Relief Holes, Standard Badging
What is the Wrekin DMS1C3/7560/K suitable for?
This C250 manhole cover is ideal for commercial developments, retail parks, business parks, service yards, utility infrastructure and kerbside locations where vehicles regularly pass but D400 loading is not required.
What is the Safeseal system?
The Wrekin Safeseal system incorporates a labyrinth seal design that helps reduce odour escape while limiting surface water ingress into the chamber, making it well suited to drainage and foul water applications.
Is this cover suitable for foul drainage?
Yes. The Safeseal design makes it suitable for foul drainage chambers, utility infrastructure and other applications where reducing odour escape is beneficial.

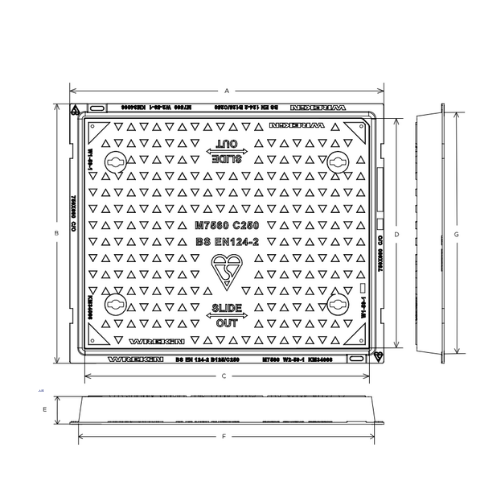

What are the dimensions?
- Clear Opening: 750 x 600mm
- Overall Frame: 860 x 710mm
- Frame Depth: 75mm
- Base Opening: 800 x 650mm
Is this cover slip resistant?
Yes. The chequered surface has been independently tested by a UKAS-accredited laboratory and achieves a PSRV of 70–84, providing excellent slip resistance.
Can this cover be supplied with locking?
Yes. Optional features include:
- Screw locking
- Neoprene seal
- Flood and odour control plate
- Safety grille
- Pressure relief holes
- Standard industry badging
Is this suitable for highways?
This cover is rated C250 and is intended for Group 3 applications, such as kerbside areas extending up to 500mm into the carriageway. For heavily trafficked roads and main carriageways, a D400 manhole cover should generally be specified.
