Description

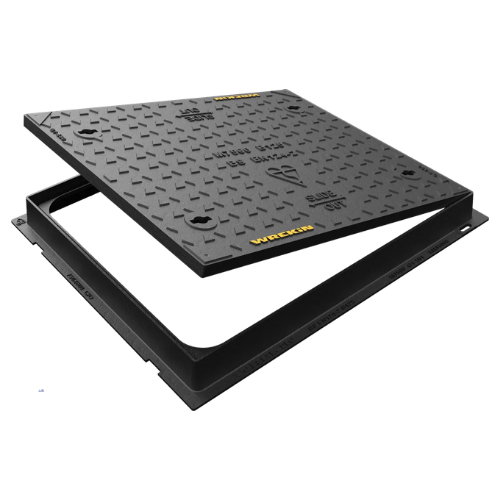

The 750 x 600 x 75mm B125 Safeseal Ductile Iron Manhole Cover is a premium-quality access cover manufactured by Wrekin for residential and light commercial drainage applications where a 750 × 600mm clear opening and a 75mm deep frame are required. Manufactured from high-strength ductile iron and certified to BS EN 124-2 Class B125, it provides dependable long-term performance in areas subject to occasional light vehicle traffic.
The 75mm frame depth makes this model particularly suitable for installations requiring a deeper bedding depth, offering greater flexibility for new-build developments, reinstatement works and projects where additional frame embedment is specified.
Designed with Wrekin’s proven Safeseal labyrinth sealing system, the cover helps minimise odour escape while reducing water ingress into the chamber. The engineered sealing profile delivers excellent long-term performance while remaining easy to remove for maintenance operations.
The cover incorporates a high-performance chequer plate surface independently tested by a UKAS-accredited laboratory to achieve a PSRV of 70+, providing excellent slip resistance in wet and dry conditions. Indexed corners, safety keyways, tapered frame sides and central lifting points further enhance installation accuracy and safe handling.
Manufactured from durable ductile iron and backed by BSI Kitemark certification, the cover can also be supplied with optional screw locking, neoprene sealing, safety grilles, pressure relief holes, flood and odour control plates and utility badging, making it suitable for a wide range of drainage and utility applications.
Key Features
- 750 × 600mm Clear Opening
- 75mm Deep Frame – Ideal where greater bedding depth or deeper frame installation is required.
- B125 Load Class – Certified to BS EN 124-2.
- Labyrinth Safeseal System – Helps reduce odour escape and water ingress.
- PSRV 70+ Slip Resistance – Independently tested by a UKAS-accredited laboratory.
- BSI Kitemark Certified
- High-Strength Ductile Iron Construction
- Indexed Corners – Assist correct orientation during installation.
- Safety Keyways – Improve lifting safety during maintenance.
- Optional Screw Locking, Neoprene Seal & Flood Protection
Typical Applications
- Domestic driveways
- Housing developments
- Residential roads
- Utility inspection chambers
- New-build drainage installations
- Private parking areas
- Light commercial premises
- Hard landscaped developments
- Chamber replacement projects requiring a 75mm frame
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Returns are subject to a restocking fee and haulage which will be deducted from your refund.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
By completing your order, you acknowledge and accept these delivery and return terms.
- Manufacturer: Wrekin
- Product Code: DMS1B3/7560/K
- Product Range: Safeseal

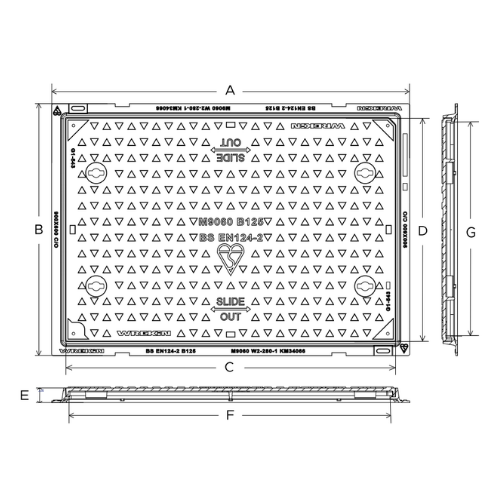

- Clear Opening: 750 × 600mm
- Overall Frame Size: 860 × 710mm
- Base Opening: 800 × 650mm
- Frame Depth: 75mm
- Load Class: B125
- BS EN Group: Group 2
- Material: Ductile Iron
- Frame Shape: Rectangular
- Cover Shape: Rectangular
- Seal Type: Labyrinth Seal
- Slip Resistance: PSRV 70+
- Certification: BSI Kitemark
- Standard: BS EN 124-2
- Optional Extras: Screw Locking, Neoprene Seal, Safety Grille, Flood & Odour Control Plate, Pressure Relief Holes, Utility Badging
The 75mm Safeseal is designed for projects requiring a deeper frame while maintaining the premium engineering and proven performance of the Wrekin Safeseal range.
- 75mm Deep Frame – Ideal where greater installation depth is specified.
- Labyrinth Seal Technology – Helps minimise odour escape and water ingress.
- Premium Wrekin Engineering – Designed for dependable long-term performance.
- High Slip Resistance – Independently tested chequer surface with PSRV 70+.
- BSI Kitemark Certified – Fully compliant with BS EN 124-2.
- Safer Handling Features – Indexed corners, safety keyways and central lifting points assist installation and maintenance.
- Optional Specification Upgrades – Locking, neoprene sealing, flood protection and safety grilles available.
