Product Description
This 450mm inspection chamber kit provides a complete modular solution for higher capacity underground drainage systems where a 160mm main connection is required.
Designed around a 450mm chamber base with 160mm main inlet and outlet, this system is well suited to larger domestic builds, adoptable-style layouts and light commercial drainage applications where increased flow capacity is needed. Unlike fixed pre-assembled chamber kits, this modular system is supplied for on-site assembly, allowing the chamber depth to be adjusted using riser sections to suit invert levels and site conditions.
A key advantage of this chamber base is its flexible connection layout. In addition to the 160mm main inlet and outlet, it also includes integrated 110mm side branch connections, making it ideal for mixed pipework systems and reducing the need for additional junctions or fittings on site. This gives installers more flexibility when tying smaller branch runs into the main drainage line.
The chamber is suitable for foul and surface water drainage systems and can be configured up to 1.2m depth in accordance with Building Regulations Part H for non-man entry applications. Cover options allow the system to be matched to pedestrian or light vehicle loading depending on the installation area.
Manufactured in the UK from durable polypropylene, this 450mm inspection chamber kit offers a lightweight, robust and practical solution for long-term underground drainage performance.
Key Benefits
- Complete 450mm inspection chamber kit supplied for on-site assembly
Dual connection design – 160mm main inlet/outlet with integrated 110mm side branches
Multi-inlet base with 45° and 90° connection options for flexible layouts
Modular riser system allows chamber depth to be adjusted on site
Sealing ring system provides a secure, watertight installation
Lightweight polypropylene construction for easier handling and installation
Suitable for installations up to 1.2m depth (non-man entry)
Manufactured in the UK using durable recycled materials
Typical Applications
- Domestic and residential drainage systems
House extensions and new build plots
Small developments and site drainage works
Foul and surface water drainage access points
Higher capacity drainage runs requiring 160mm pipework
Installation & Compliance
Supplied as a modular inspection chamber system for on-site assembly, allowing installers to adjust the chamber depth using riser sections to suit invert levels and ground conditions.
Designed for use in shallow underground drainage systems across domestic and light commercial applications, including foul and surface water drainage.
Maximum installation depth of 1.2m in accordance with typical UK Building Regulations for non-man entry inspection chambers.
Compatible with both 160mm and 110mm underground drainage pipe systems, allowing flexible integration into mixed pipework layouts.
What’s included
Supplied as a complete modular kit for on-site assembly, including base, risers and selected cover and frame.

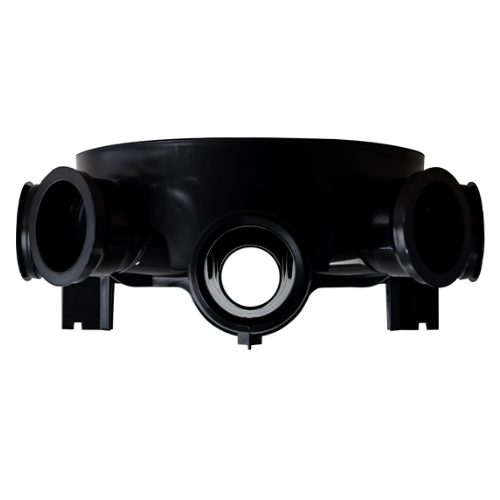

- 1 x 450mm inspection chamber base (160mm main inlet/outlet with integrated 110mm side branches)
- Selected number of 450mm riser sections (based on chosen depth)
- 1 x selected cover and frame (A15 or B125, round or square options)
- Sealing ring system for watertight riser connections
Risers are supplied loose and assembled on site to achieve the required chamber depth.
-
Supplied as individual components for on-site assembly. Risers are not pre-assembled, allowing flexibility during installation.
Optional Add-On:
- 450mm chamber sealing ring (recommended for watertight installation)
Delivery & Lead Time
Lead time is typically 2-3Â working days, subject to availability at the time of order. Deliveries are made on large commercial vehicles and goods are supplied palletised, with customer offload normally required. If site access is restricted or mechanical offload is needed, please advise at the point of order so alternative arrangements can be made.
- Chamber Diameter: 450mm
- Base Depth: 236mm
- Riser Height: 233mm each
- Pipe Compatibility: 160mm & 110mm
- Material: Polypropylene
- Colour: Black
- Compliance: BS EN 13598-1
