Visqueen DPC Joint Support 400mmx100mm Stainless Steel (Pk of 10)

Visqueen DPC Joint Support

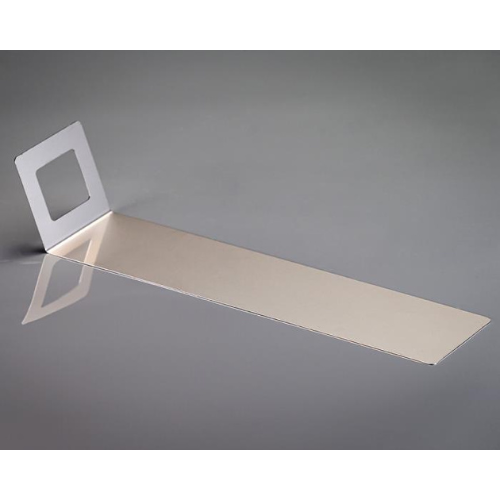

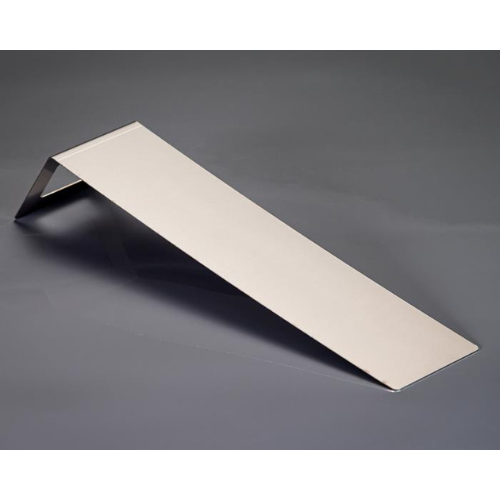

Lightweight, stainless steel supports designed to maintain the shape and integrity of cavity tray lap joints. Supplied either bespoke (to Visqueen PFU-NC-660 drawing) or in packs of 10 hand-bendable units (for trays up to 500mm wide).

Key Features:

• Prevents sagging – supports cavity tray at joints

• Rigid and durable – ensures long-term lap integrity

• Easy to handle – lightweight and simple to install

• Bespoke or bendable – adaptable for any cavity tray profile

• Non-combustible – A1 fire rated (European Commission)

• BS 8215 compliant – for fully supported DPC joints

• Certified to ISO 9001, 14001, 45001

Typical Uses:

• Structural support under DPC lap joints

• Optional secondary support under cavity tray lengths to prevent pooling

• Used with Visqueen Zedex and other Visqueen cavity tray systems

Installation Guidance:

• Position support beneath joint before forming DPC lap

• Embed in inner leaf or fix using:

  • Visqueen Zedex Mastic (for Zedex system)

  • Visqueen Butyl Tape (for standard systems)

• Support rests on outer leaf for additional stability

• Ensure profile matches tray before install

System Compatible With:

• Visqueen Zedex Mastic (380ml)

• Visqueen Preformed & Flexi Preformed Units

• Visqueen Zedex Non-Combustible DPC

Additional Notes:

• Supplied in stainless steel grade 1.4301 (304) as standard

• 316-grade (1.4401) recommended for coastal or aggressive environments (quote on request)

• Standard units do not include fixing holes — advise if required

• Store dry and under cover. Handle with care — sharp edges possible

• Associated products should not be installed below 5°C
