Lite Aqua 100 Corner Unit 92mm Depth A15 Galvanised Slotted Grating

£11.25 excl. VAT

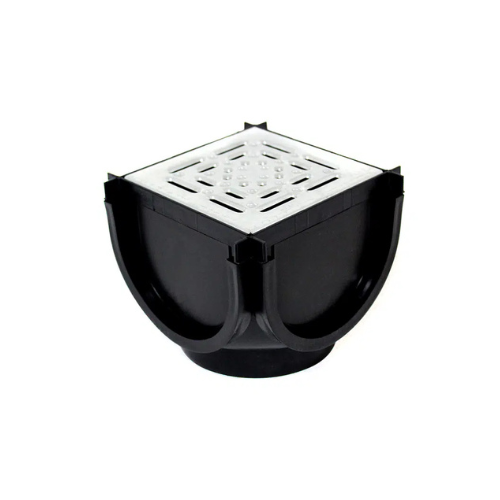

Lite Aqua Corner Unit

The Lite Aqua Corner Unit is specifically designed to enable seamless 90° turns in your drainage channel system. It includes a 110mm vertical outlet equipped with a built-in foul air trap to effectively block unpleasant odors from underground drainage systems.

This corner unit also features a sleek, minimalist grating to complement the overall design of your drainage setup. To ensure a perfect fit, please select the appropriate corner unit, as designs and specifications may vary between systems.

Important Note: The corner unit is compatible only with the male end of the channels. If multiple corner units are needed in the same run, channel modifications (such as cutting) will be required to achieve proper alignment.



SKU: LAB.CU.GS.92 Categories: , , , Tag:

Description

Grating Style: A15 Slotted Steel
External Depth: 115mm
Internal Depth: 70mm
External Width: 140mm
Internal Width: 115mm
Length: 140mm
Load Class: A15 (1.5 Tonne)
Materials: Composite, Galvanised Steel
Outlet: 110mm Vertical

There are no reviews yet.

Write a Review

Be the first to review “Lite Aqua 100 Corner Unit 92mm Depth A15 Galvanised Slotted Grating”

Your email address will not be published. Required fields are marked *

“

Fantastic Service with prompt delivery. Everything was communicated clearly and pricing seems competitive. Would definitely recommend and will be using again.

Carl KemptonCK Construction
“

Our productivity has noticeably gone up since using Drainage and Civil Direct. We are now able to dedicate more time on our projects while having the peace of mind that our supply chain has improved.

Joe LaughlinSite Manager
“

DCD have enhanced our buying experience and allowed us to consistently deliver working solutions for our end users.

Jack GrahamProject Manager
“

The product knowledge and after sales support from the team at DCD is five star.

Zak ReidQuantity Surveyor

Related products

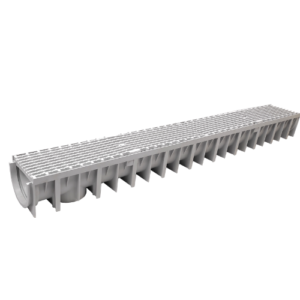

  • Lite Aqua 100 1Mtr Channel 92mm Depth – A15 Composite InterLock Grate Grey
    Add to basket

    Lite Aqua 100 1Mtr Channel 92mm Depth – A15 Composite InterLock Grate Grey

    £7.95 excl. VAT

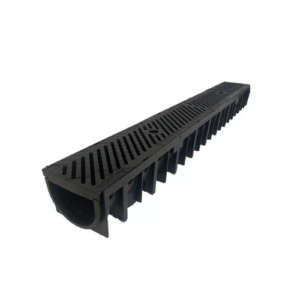

  • Lite Aqua 100 Shallow 1Mtr Channel 92mm Depth Galvanised Edge Rail – C250- Composite InterLock Grate
    Add to basket

    Lite Aqua 100 Shallow 1Mtr Channel 92mm Depth Galvanised Edge Rail – C250- Composite InterLock Grate

    £32.29 excl. VAT
  • Polycon-Self 100 Channel Drain A15 Galvanised Heelsafe Grate c/w Snaplock
    Select options This product has multiple variants. The options may be chosen on the product page

    Polycon-Self 100 Channel Drain A15 Galvanised Heelsafe Grate c/w Snaplock

    £13.30 excl. VAT

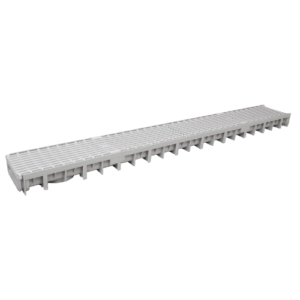

  • Lite Aqua 100 Shallow 1Mtr Channel 55mm Depth – A15 Composite InterLock Grate Grey
