Description

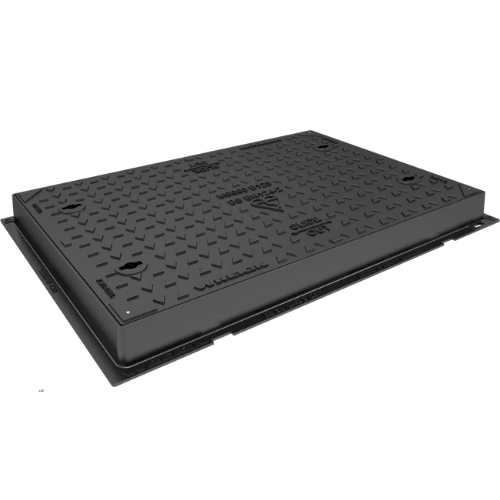

The 900 x 600 x 75mm B125 Safeseal Ductile Iron Manhole Cover is a premium-quality access cover manufactured by Wrekin for residential and light commercial drainage applications where a 900 × 600mm clear opening and a 75mm deep frame are required. Manufactured from high-strength ductile iron and certified to BS EN 124-2 Class B125, it provides dependable long-term performance in areas subject to occasional light vehicle traffic.
The 75mm frame depth makes this cover particularly suitable for installations requiring greater bedding depth, making it an excellent choice for new-build developments, chamber replacements and projects where additional frame embedment has been specified.
Designed with Wrekin’s proven Safeseal labyrinth sealing system, the cover helps minimise odour escape while reducing water ingress into the chamber. The engineered sealing profile provides enhanced sealing performance while remaining easy to remove for routine maintenance.
The cover features a high-performance chequer plate surface independently tested by a UKAS-accredited laboratory to achieve a PSRV value between 70 and 84, delivering excellent slip resistance in both wet and dry conditions. Safety keyways, tapered frame sides and central lifting points improve safe handling and make maintenance operations easier.
Manufactured from durable ductile iron and backed by BSI Kitemark certification and CCPI assessment, the cover is available with optional screw locking, neoprene sealing, safety grilles, pressure relief holes, flood and odour control plates and utility badging, making it suitable for a wide range of drainage and utility projects.
Whether you’re specifying drainage for a housing development or replacing an existing access cover, the 900 x 600 x 75mm Wrekin Safeseal delivers premium engineering, dependable performance and long-term reliability.
Key Features
- 900 × 600mm Clear Opening
- 75mm Deep Frame – Ideal where greater bedding depth or frame embedment is required.
- B125 Load Class – Certified to BS EN 124-2.
- Safeseal Labyrinth Sealing System – Helps minimise odour escape and water ingress.
- PSRV 70–84 Slip Resistance – Independently tested by a UKAS-accredited laboratory.
- BSI Kitemark Certified
- CCPI Assessed Product
- High-Strength Ductile Iron Construction
- Safety Keyways – Improve safe lifting during maintenance.
- Tapered Frame Design – Allows smoother cover removal.
- Optional Screw Locking
- Optional Neoprene Seal
- Optional Safety Grille
- Optional Flood & Odour Control Plate
- Optional Pressure Relief Holes
Typical Applications
- Domestic driveways
- Residential developments
- Utility inspection chambers
- Housing developments
- Private parking areas
- New-build drainage installations
- Chamber replacement projects
- Light commercial premises
- Hard landscaped areas with occasional vehicle access
Looking for a More Cost-Effective Alternative?
If you require a certified BS EN 124-2 B125 manhole cover but don’t need the additional engineering features of the Wrekin Safeseal range, our Eccles DU033 900 × 600 × 50mm B125 EasySeal Manhole Cover offers excellent value, SmartGrip anti-slip technology and dependable performance for residential and light commercial applications.
View the Eccles DU033 900 × 600 B125 EasySeal Manhole Cover
All manhole covers, gully covers, and frames are supplied through an external supplier. Delivery charges will be calculated in your cart at checkout. Due to the size and weight of these items, deliveries are typically made using an artic vehicle.
Returns are subject to a restocking fee and haulage which will be deducted from your refund.
Please review all product specifications before placing an order. If you require assistance selecting the correct product, our team is available on 03338803558 or info@drainageandcivilsdirect.co.uk to provide professional guidance.
By completing your order, you acknowledge and accept these delivery and return terms.
- Manufacturer: Wrekin
- Product Code: DMS1B3/9060/K
- Product Range: Safeseal

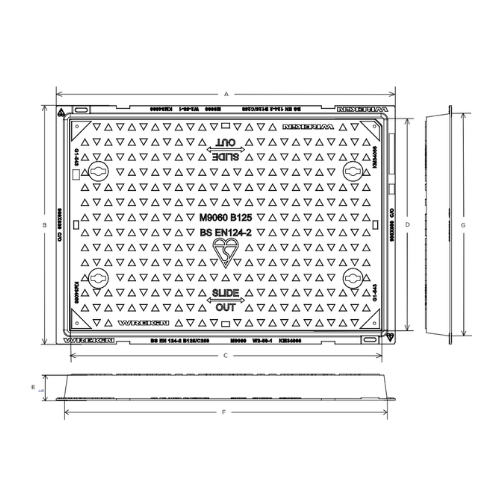

- Clear Opening: 900 × 600mm
- Overall Frame Size: 1,010 × 710mm
- Base Opening: 950 × 650mm
- Frame Depth: 75mm
- Load Class: B125
- BS EN Group: Group 2
- Material: Ductile Iron
- Weight: 57.2kg
- Frame Shape: Rectangular
- Cover Shape: Rectangular
- Seal Type: Labyrinth Seal
- Slip Resistance: PSRV 70–84
- Certification: BSI Kitemark
- CCPI Assessed: Yes
- Standard: BS EN 124-2
- Optional Extras: Screw Locking, Neoprene Seal, Safety Grille, Flood & Odour Control Plate, Pressure Relief Holes and Standard Utility Badging
The Wrekin Safeseal range is engineered to provide reliable, long-term performance for residential, commercial and infrastructure drainage projects. Combining premium ductile iron construction with innovative sealing technology and third-party certification, Safeseal access covers are trusted throughout the UK construction industry.
- Labyrinth Seal Technology – Engineered to help minimise odour escape while reducing water ingress into the chamber.
- Premium Wrekin Engineering – Manufactured by one of the UK’s leading access cover specialists with decades of industry experience.
- Outstanding Slip Resistance – Independently tested by a UKAS-accredited laboratory to achieve a PSRV of 70–84 on the chequer plate surface.
- BSI Kitemark Certified – Independently tested and certified to BS EN 124-2 for quality, strength and performance.
- CCPI Assessed – Independently assessed under the Code for Construction Product Information, providing greater confidence in published product information.
- Safer Handling Features – Safety keyways, tapered frame sides and central lifting points assist installation and maintenance operations.
- Flexible Specification Options – Available with optional screw locking, neoprene seals, safety grilles, flood and odour control plates, pressure relief holes and utility badging.
- High-Strength Ductile Iron Construction – Designed for exceptional durability, corrosion resistance and a long operational life.
